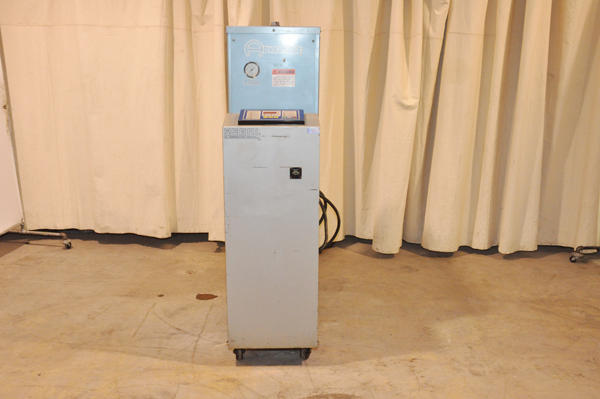

Used Advantage Model: R-1230HC-41D2 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 14| Status | Sold |
|---|---|
| Manufacturer | Advantage |
| Model | R-1230HC-41D2 |
| Size | 12 kW |
| Inventory Number | DCM-4081 |
Advantage - R-1230HC-41D2 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, NEMA 1 Controls
View Available Temperature Control Units
Questions? Call (847) 360-9170 and mention DCM-4081.
Features & Accessories
- Equipped with new heat exchanger
- Regal HE Series Microprocessor Controls
- Water Cooling Circuit
- Built-in pump pressure relief valve
- Unit on casters for easy movement
Item Specifications for DCM-4081
| US | Metric | |
| Main Heater Power (Zone #1): | 12 KW | 12 KW |
| Pump Motor Size (Zone #1): | 1 HP | .75 KW |
| Flow Rate (Zone #1): | 30 gallons per minute | 113.56 liters per minute |
| Connection size/type (Zone #1): | 1 inch NPT | 1 inch NPT |
| Maximum Operating Temperature: | 500 degrees F | 260 degrees C |
| Overall Size (L x W x H): | 41 x 15 x 61 inches | 1041 x 381 x 1549 mm |
| Full Load Amps @ 460/3/60: | 20 amp | 20 amp |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Regloplas Model: 300L 20 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-3998
- Sold – Sterlco Model: M2B2016-M1 24 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4026
- Sold – AEC Model: TDH-6Q 75 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4054
- Sold – AEC Model: TCOU-2 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4064
- Sold – HEAT Heat Exchange And Transfer Model: KM550B-12-483 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit DCM-4090
- Sold – AEC Model: TCOU-1 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4102
- Sold – AEC Model: TDH-5 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4166
- Sold – Mokon Model: H44112-BM 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4195
- Sold – 480 Volt Connection Plugs for Temperature Control Units DCM-4262
- Sold – Mokon Model: H44212EH 24 KW (12 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4339
Video
Description
Used, Advantage Model R-1230HC-41D2 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Regal HE Series Microprocessor Controls, Water Cooling Circuit, Built-in pump pressure relief valve, Unit on casters for easy movement, NEMA 1 controls, second Hand, DCM-4081
