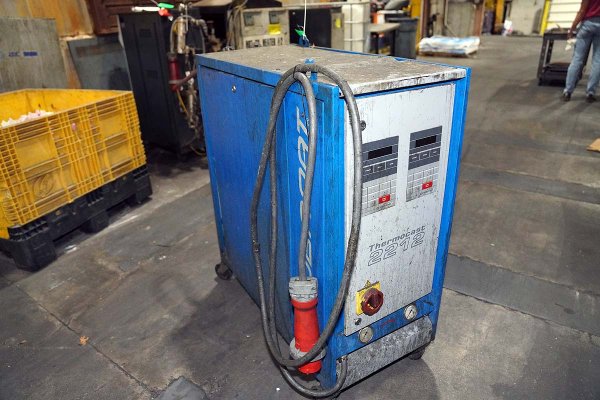

Used Robamat Hot Water Model: Thermocast 2212 36 KW (18KW Per Zone) Dual (two) Zone Portable Refrigerated Water Chiller Temperature Control Unit
1 / 5| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Robamat Hot Water |
| Model | Thermocast 2212 |
| Size | 36 KW (18KW Per Zone) |
| Inventory Number | DCM-5984 |
Robamat Hot Water - Thermocast 2212 36 KW (18KW Per Zone) Dual (two) Zone Portable Refrigerated Water Chiller Temperature Control Unit, Robamat 103 Controls
View Available Temperature Control Units
Questions? Call (847) 360-9170 and mention DCM-5984.
Features & Accessories
- Leak-free pump with magnetic coupling
- Solid-state relay (SSR)
- High Limit Safety Circuit
- Separate Expansion Tank
- Robamat 103 Digital Temperature Controller
Item Specifications for DCM-5984
| US | Metric | |
| Main Heater Power (Zone #1): | 18 kW | 18 kW |
| Pump Motor Size (Zone #1): | 2.0 HP | 1 KW |
| Flow Rate (Zone #1): | 15.8 gallons per minute | 60 liters per minute |
| Connection size/type (Zone #1): | 3/4 inch NPT | 1.81 mm NPT |
| Main Heater Power (Zone #2): | 18 kW | 18 kW |
| Pump Motor Size (Zone #2): | 2 HP | 1 KW |
| Flow Rate (Zone #2): | 15.8 gallons per minute | 60 liters per minute |
| Connection size/type (Zone #2): | 3/4 inch NPT | 1.81 mm NPT |
| Maximum Operating Temperature: | 320 degrees Fahrenheit | 160 degrees C |
| Power Requirements: | 480 volt / 3 phase / 60 cycle | 480 volt / 3 phase / 60 cycle |
| Overall Size (L x W x H): | 16.38 x 56.3 x 40.83 inches | 416 x 1430 x 1037 |
| Weight: | 374 Pounds | 170 kg |
Description
Used, Robamat Hot Water Model Thermocast 2212 36 KW (18KW Per Zone) Dual (two) Zone Portable Refrigerated Water Chiller Temperature Control Unit For_Sale, Features Include: Leak-free pump with magnetic coupling, Solid-state relay (SSR), High Limit Safety Circuit, Separate Expansion Tank, Robamat 103 Digital Temperature Controller, Robamat 103 controls, second Hand, DCM-5984
