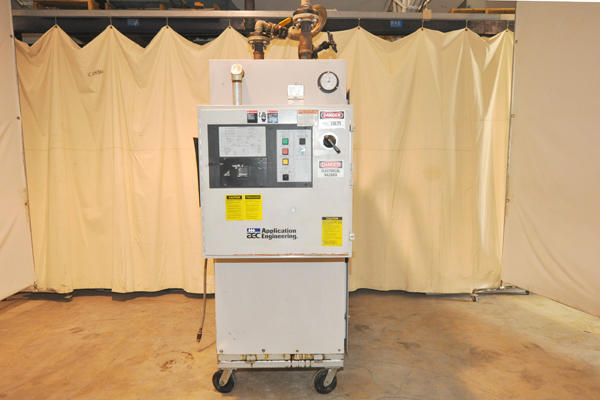

Used AEC Model: TDH-6Q 75 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 14| Status | Sold |
|---|---|
| Manufacturer | AEC |
| Model | TDH-6Q |
| Size | 75 KW |
| Inventory Number | DCM-4054 |
AEC - TDH-6Q 75 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, OMRON E5CK Controls
Questions? Call (847) 360-9170 and mention DCM-4054.
Features & Accessories
- Omron Digital Temperature Controls
- Solenoid Control Heat Exchanger Water Cooling Circuit
- Compact Cabinet Design
Item Specifications for DCM-4054
| US | Metric | |
| Main Heater Power: | 75 KW | 75 KW |
| Pump Motor Size: | 5 HP | 3.7 kW |
| Maximum Operating Temperature: | 550 degrees F | 288 degrees C |
| Flow Rate: | 90 GPM | 340 LPM |
| Connection size/type: | 2 inch NPT | 2 inch NPT |
| Overall Size (L x W x H): | 70 x 33 x 89 inches | 1778 x 838 x 2260 mm |
| Approximate Shipping Weight: | 2000 pounds | 907 kg |
| Power Requirements @ 97.6 amps | 480 volt / 3 phase / 60 cycle | 480 volt / 3 phase / 60 cycle |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Regloplas Model: 300L 20 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-3998
- Sold – Sterlco Model: M2B2016-M1 24 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4026
- Sold – AEC Model: TCOU-2 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4064
- Sold – Advantage Model: R-1230HC-41D2 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4081
- Sold – HEAT Heat Exchange And Transfer Model: KM550B-12-483 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit DCM-4090
- Sold – AEC Model: TCOU-1 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4102
- Sold – AEC Model: TDH-5 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4166
- Sold – Mokon Model: H44112-BM 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4195
- Sold – 480 Volt Connection Plugs for Temperature Control Units DCM-4262
- Sold – Mokon Model: H44212EH 24 KW (12 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4339
Video
Documents
- AEC TDH-6 Series Hot Oil UnitPDF · 555 KB
Description
Used, AEC Model TDH-6Q 75 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Omron Digital Temperature Controls, Solenoid Control Heat Exchanger Water Cooling Circuit, Compact Cabinet Design, OMRON E5CK controls, second Hand, DCM-4054
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
