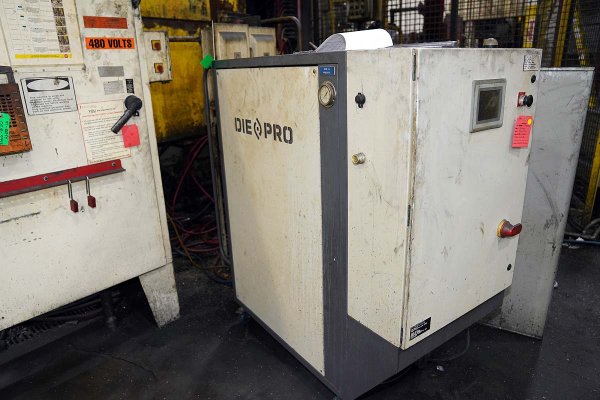

Used Die Pro Model: Core Cool 3.3.15 100 KW (25KW Per Zone) Dual (two) Zone Portable Refrigerated Water Chiller Temperature Control Unit
1 / 5| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Die Pro |
| Model | Core Cool 3.3.15 |
| Size | 100 KW (25KW Per Zone) |
| Inventory Number | DCM-5985 |
Die Pro - Core Cool 3.3.15 100 KW (25KW Per Zone) Dual (two) Zone Portable Refrigerated Water Chiller Temperature Control Unit, Allen-Bradley PLC/Touch Panel Controls
View Available Temperature Control Units
Questions? Call (847) 360-9170 and mention DCM-5985.
Features & Accessories
- NEW IN 2022
- ALLEN BRADLEY COMPACT LOGIX CONTROL SYSTEM.
- COOLING PUMP OUTPUT RATING IN P.S.I. (BAR) – 300 (20).
- NETWORK COMMUNICATION PROTOCOLS. (ETHERNET/IP, PROFINET, PROFIBUS, CC LINK, MODBUS, DEVICENET, DH+, SERIAL) VIA GATEWAY MODULE.
- NEMA TYPE POWER CONTROL CABINET FOR OPERATION WITH INPUT VOLTAGE 480 VOLT 60 Hz 3 PHASE.
- 316 SS PIPE FITTINGS.
- COOLING SYSTEM TANK CAPACITY. (52.5 GALLONS) (198.7 LITERS)
Item Specifications for DCM-5985
| US | Metric | |
| Main Cooling Power (Zone #1-4): | 100 kW | 100 kW |
| Pump Motor Size (Zone #1-4): | 5 HP | 3.68 kW |
| Flow Rate (Zone #1-4): | 15 gallons per minute | 57 liters per minute |
| Connection size/type (Zone #1-4): | 3/4 inch NPT | 1.81 mm NPT |
| Maximum Operating Temperature: | 430 degrees F | 221 degrees C |
| Power Requirements: | 480 volt / 3 phase / 60 cycle | 480 volt / 3 phase / 60 cycle |
| Overall Size (L x W x H): | 50 x 24 x 50 inches | 1270 x 610 x 1270 mm |
| Weight: | 750 Pounds | 340 kg |
Description
Used, Die Pro Model Core Cool 3.3.15 100 KW (25KW Per Zone) Dual (two) Zone Portable Refrigerated Water Chiller Temperature Control Unit For_Sale, Features Include: ALLEN BRADLEY COMPACT LOGIX CONTROL SYSTEM., COOLING PUMP OUTPUT RATING IN P.S.I. (BAR) – 300 (20)., NETWORK COMMUNICATION PROTOCOLS. (ETHERNET/IP, PROFINET, PROFIBUS, CC LINK, MODBUS, DEVICENET, DH+, SERIAL) VIA GATEWAY MODULE., NEMA TYPE POWER CONTROL CABINET FOR OPERATION WITH INPUT VOLTAGE 480 VOLT 60 Hz 3 PHASE., 316 SS PIPE FITTINGS., COOLING SYSTEM TANK CAPACITY. (52.5 GALLONS) (198.7 LITERS), Allen-Bradley PLC/Touch Panel controls, second Hand, DCM-5985
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
