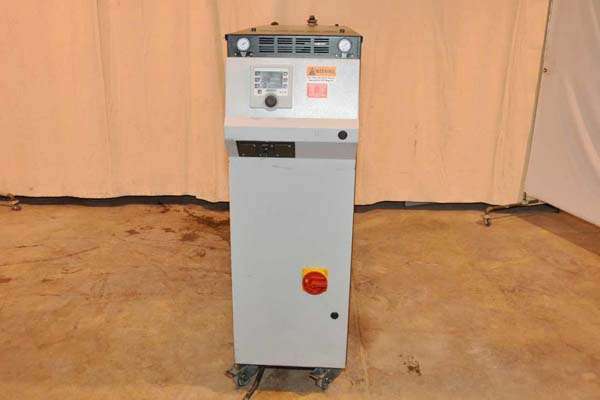

Used Regloplas Model: 300L 20 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 14| Status | Sold |
|---|---|
| Manufacturer | Regloplas |
| Model | 300L |
| Size | 20 kW |
| Inventory Number | DCM-3998 |
Regloplas - 300L 20 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, RT100 Controls
Questions? Call (847) 360-9170 and mention DCM-3998.
Features & Accessories
- Magnetic Drive Pump
- SSR (Solid State Relay)
- Pressure Gauges on Outlet and Inlet
- Separate expansion vessel
Item Specifications for DCM-3998
| US | Metric | |
| Main Heater Power (Zone #1): | 20 kW | 20 kW |
| Pump Motor Size (Zone #1): | 3.75 HP | 2.83 KW |
| Flow Rate (Zone #1): | 23 gallons per minute | 87 liters per minute |
| Connection size/type (Zone #1): | 3/4 inch NPT | G3/4 IG |
| Maximum Operating Temperature: | 572 degrees F | 300 degrees C |
| Power Requirements: | 480 volt / 3 phase / 60 cycle | 480 volt / 3 phase / 60 cycle |
| Overall Size (L x W x H): | 60 x 17 x 53 inches | 1524 x 435 x 1165 mm |
| Weight: | 497 Pounds | 225 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Sterlco Model: M2B2016-M1 24 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4026
- Sold – AEC Model: TDH-6Q 75 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4054
- Sold – AEC Model: TCOU-2 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4064
- Sold – Advantage Model: R-1230HC-41D2 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4081
- Sold – HEAT Heat Exchange And Transfer Model: KM550B-12-483 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit DCM-4090
- Sold – AEC Model: TCOU-1 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4102
- Sold – AEC Model: TDH-5 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4166
- Sold – Mokon Model: H44112-BM 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4195
- Sold – 480 Volt Connection Plugs for Temperature Control Units DCM-4262
- Sold – Mokon Model: H44212EH 24 KW (12 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit DCM-4339
Video
Description
Used, Regloplas Model 300L 20 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Magnetic Drive Pump, SSR (Solid State Relay), Pressure Gauges on Outlet and Inlet, Separate expansion vessel, RT100 controls, second Hand, DCM-3998
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
