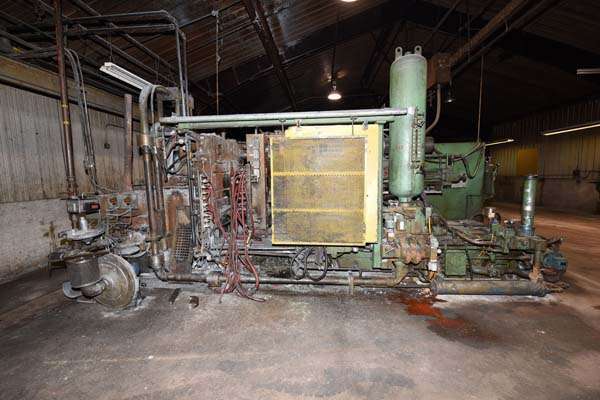

Used Prince Model: 629 HC 650 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine
1 / 18| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 629 HC |
| Size | 650 Ton |
| Inventory Number | DCM-3999 |
Prince - 629 HC 650 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen Bradley Relay Controls Controls
View Available Hot Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3999.
Features & Accessories
- Hydraulic Motorized Die Height Adjustment
- Hydraulic Gooseneck/Nozzle Clamping Cylinders
- Twin Cylinder Hydraulic Bumper Plate Ejection System
- Air Safety Ratchet Device
- Allen Bradley Relay Controls
- Four (4) auxiliary hydraulic side core circuits two (2) on moving platen two (2) on stationary platen
Item Specifications for DCM-3999
| US | Metric | |
| Rated Tonnage: | 650 tons | 589 tons |
| Tie Bar Diameter: | 6.75 inches | 171 mm |
| Clearance between Tie Bars: | 29.25 x 29.25 inches | 742 x 742 mm |
| Front Platen Size (T x W x H): | 10.75 x 51 x 58 inches | 273 x 1295 x 1473 mm |
| Moving Platen Size (T x W x H): | 9.75 x 51 x 53 inches | 247 x 1295 x 1346 mm |
| Die Thickness (minimum to maximum): | 14 - 36 inches | 355 - 914 mm |
| Die Stroke: | 17.5 inches | 445.5 mm |
| Shot Position Standard: | Center | Center |
| Shot Cylinder Stroke: | 9 inches | 228 mm |
| Motor Size: | 60 HP | 44.76 Kw |
| Machine Size (L x W x H): | 22 x 7.5 x 9.8 feet | 5.59 x 2.29 x 2.95 meters |
| Machine Weight: | 64,000 pounds | 29,029 kg |
Description
Used, Prince Model 629 HC 650 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Motorized Die Height Adjustment, Hydraulic Gooseneck/Nozzle Clamping Cylinders, Twin Cylinder Hydraulic Bumper Plate Ejection System, Air Safety Ratchet Device, Allen Bradley Relay Controls, Four (4) auxiliary hydraulic side core circuits two (2) on moving platen two (2) on stationary platen, Allen Bradley Relay Controls controls, second Hand, DCM-3999
