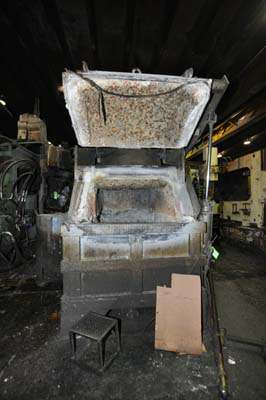

Used MPH Model: AMH-500 500 Pound Per Hour Melt Capacity Reverberatory Type Wet Bath Stationary Aluminum Melting and Holding Furnace
1 / 8| Status | Sold |
|---|---|
| Manufacturer | MPH |
| Model | AMH-500 |
| Size | 500 Pound Per Hour Melt Capacity |
| Inventory Number | DCM-3886 |
MPH - AMH-500 500 Pound Per Hour Melt Capacity Reverberatory Type Wet Bath Stationary Aluminum Melting and Holding Furnace, Honeywell Digital Temperature Control Controls
View Available Melting Holding Furnaces
Questions? Call (847) 360-9170 and mention DCM-3886.
Features & Accessories
- Dry Hearth Primary melting area (ingots)
- Wet bath charge area for scrap
- Honeywell Digital Burner Controls
- Honeywell Digital Temperature Controls
Item Specifications for DCM-3886
| US | Metric | |
| Melting Rate: | 500 pounds/hour | 227 Kg/Hour |
| Bath Capacity: | 4,400 pounds | 2,000 Kg |
| Fuel Type: | Natural Gas/LPG | Natural Gas |
| Furnace Design: | Reverberatory | Reverberatory |
| Primary Charge Well type: | Wet Bath Area | Dry Hearth |
| Number of Burners: | 1 | 1 |
| Burner Location: | Roof | Roof |
| Tap Out: | Yes | Yes |
| Temperature Controllers: | Honeywell Digital | Honeywell Digital |
| Total BTU: | 750,000 | 750,000 |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Prince 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine DCM-3798
- Sold – Metal Mechanics 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-3836
- Sold – Rimrock 410 Servo-Drive Reciprocator, 80 inch Stroke with Epic Controller DCM-3854
- Sold – Rimrock 305 Ladle with Epic Controller DCM-3855
- Sold – ABB IRB 6400/120 6-Axis Industrial Robot for Extracting Die Castings DCM-3859
- Sold – Rimrock 30 x 216 inch mesh belt type indexing conveyor DCM-3877
Description
Used, MPH Model AMH-500 500 Pound Per Hour Melt Capacity Reverberatory Type Wet Bath Stationary Aluminum Melting and Holding Furnace For_Sale, Features Include: Dry Hearth Primary melting area (ingots), Wet bath charge area for scrap, Honeywell Digital Burner Controls, Honeywell Digital Temperature Controls, Honeywell Digital Temperature Control controls, second Hand, DCM-3886
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
