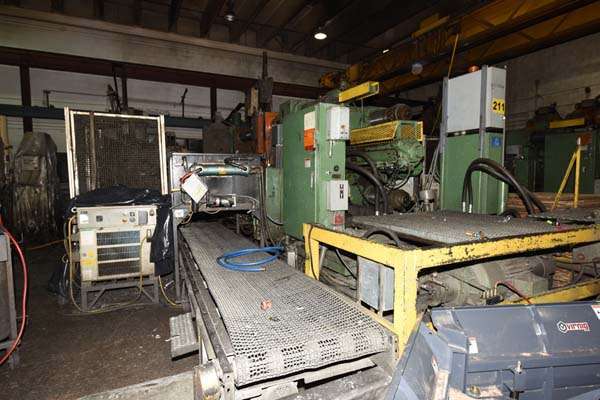

Used Prince Model: 1242 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 28| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 1242 CCA |
| Size | 1200 Ton |
| Inventory Number | DCM-3798 |
Prince - 1242 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/05 Solid State Programmable with PanelView 600 HMI Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3798.
Features & Accessories
- Available as a complete fully automated die cast cell including: MPH Natural Gas aluminum melting/holding furnace, Rimrock 305 ladle, Rimrock 410 die sprayer, ABB 6400 robot extractor, parts conveyor and Metal Mechanics 50 ton trim press
- Allen Bradley SLC 5/05 Solid State Programmable with PanelView 600 HMI
- Electric Motorized Die Height Adjustment
- Adjustable Shot Stroke
- Twin Cylinder Hydraulic Bumper Plate Ejection, Five (5) Auxiliary Core Circuits on Moving Platen
- Trabon Automatic Linkage Lubrication System
- Available as a complete fully automated die cast cell including: MPH Natural Gas aluminum melting/holding furnace, Rimrock 305 ladle, Rimrock 410 die sprayer, ABB 6400 robot extractor, parts conveyor and Metal Mechanics 50 ton trim press
Item Specifications for DCM-3798
| US | Metric | |
| Rated Tonnage | 1200 tons | 1088 tons |
| Tie Bar Diameter | 9.5 inches | 241.3 mm |
| Clearance Between Tie bars | 42.5 x 42.5 inches | 1079.5 x 1079.5 mm |
| Front Platen Size (T x W x H) | 17.75 x 70 x 80 inches | 450.9 x 1778 x 2032 mm |
| Moving Platen Size (T x W x H) | 15.75 x 70 x 70 inches | 400 x 1778 x 1778 mm |
| Die Thickness (min. - max.) | 24 - 44 inches | 609.6 - 1117.6 mm |
| Die Stroke | 27 inches | 685.8 mm |
| Shot Positions | Center, -8, -14 inches | Center, --203, -355 mm |
| Machine Control | Allen Bradley SLC 5/03 | Allen Bradley SLC 5/03 |
| Motor Size | 100 hp | 74.6 kw |
| Machine Size (L x W x H) | 35.6 x 8.6 x 12.6 feet | 10.9 x 2.6 x 3.8 m |
| Machine Weight | 155,000 pounds | 70,306 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Metal Mechanics 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-3836
- Sold – Rimrcok 410 Servo-Drive Reciprocator, 80 inch Stroke with Epic Controller DCM-3854
- Sold – Rimrock 305 Ladle with Epic Controller DCM-3855
- Sold – ABB IRB 6400/120 6-Axis Industrial Robot for Extracting Die Castings DCM-3859
- Sold – Rimrock 30 x 216 inch mesh belt type indexing conveyor. DCM-3877
- Sold – MPH AMH 500, 500 Pound Per Hour Aluminum Melting-Holding Furnace DCM-3886
Description
Used, Prince Model 1242 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Allen Bradley SLC 5/05 Solid State Programmable with PanelView 600 HMI, Electric Motorized Die Height Adjustment, Adjustable Shot Stroke, Twin Cylinder Hydraulic Bumper Plate Ejection, Five (5) Auxiliary Core Circuits on Moving Platen, Trabon Automatic Linkage Lubrication System, Available as a complete fully automated die cast cell including: MPH Natural Gas aluminum melting/holding furnace, Rimrock 305 ladle, Rimrock 410 die sprayer, ABB 6400 robot extractor, parts conveyor and Metal Mechanics 50 ton trim press, Allen Bradley SLC 5/05 Solid State Programmable with PanelView 600 HMI controls, second Hand, DCM-3798
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
