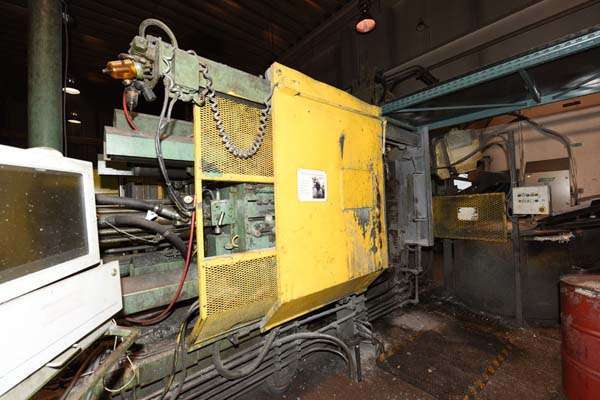

Used HPM Model: II-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used HPM Model: II-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 28
StatusSold
ManufacturerHPM
ModelII-600-A
Size600 Ton
Inventory NumberDCM-3802

HPM - II-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 with PanelView 550 HMI Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDF

Questions? Call (847) 360-9170 and mention DCM-3802.

Features & Accessories

  • Available withe the following items: Thermtronix RS aluminum melting/holding furnace, Rimrock 305 ladle, Rimrock 410 die sprayer (control missing) and Metal Mechanics trim press.
  • Hydraulic Motorized Die Height Adjustment, Allen Bradley SLC 5/03 with PanelView 550 HMI
  • Air Safety Ratchet
  • Hydraulic Bumper Plate Ejection System
  • Trabon Automatic Linkage Lubrication System - Dual Lube System Oil & Grease
  • Two (2) Core Circuits on Moving Platen
  • Available withe the following items: Thermtronix RS aluminum melting/holding furnace, Rimrock 305 ladle, Rimrock 410 die sprayer (control missing) and Metal Mechanics trim press

Item Specifications for DCM-3802

USMetric
Locking Force:600 tons545 tons
Tie Bar Diameter:6 inches736 mm x 736 mm
Clearance Between Tie Bars (H x V):29 x 29 inches736 mm x 736 mm
Die Thickness (minimum - maximum):14 - 36 inches355 mm - 914 mm
Die Stroke (minimum - maximum):12 - 18 inches304 mm - 457 mm
Moving Platen Size:48 x 48 inches1219 mm x 1219 mm
Shot Positions:Center & -6 inches below center0 & -152 mm below center
Shot Cylinder Stroke:19 - 23 inches482 mm - 584 mm
Shot Intensification:Multiplier CylinderMultiplier Cylinder
Power:480/3/60480/3/60
Machine Size:7.1 x 26.2 feet2.2 x 8 m
Machine Weight:57,000 pounds21,274 kg

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Description

Used, HPM Model II-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Motorized Die Height Adjustment, Allen Bradley SLC 5/03 with PanelView 550 HMI, Air Safety Ratchet, Hydraulic Bumper Plate Ejection System, Trabon Automatic Linkage Lubrication System - Dual Lube System Oil & Grease, Two (2) Core Circuits on Moving Platen, Available withe the following items: Thermtronix RS aluminum melting/holding furnace, Rimrock 305 ladle, Rimrock 410 die sprayer (control missing) and Metal Mechanics trim press, Allen Bradley SLC 5/03 with PanelView 550 HMI controls, second Hand, DCM-3802

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
