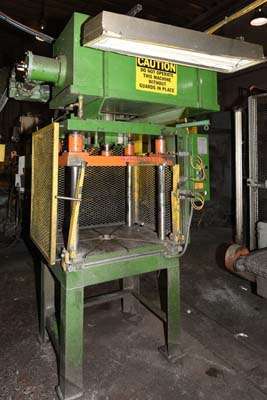

Used Metal Mechanics Model: 15 15 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 10| Status | Sold |
|---|---|
| Manufacturer | Metal Mechanics |
| Model | 15 |
| Size | 15 Ton |
| Inventory Number | DCM-3841 |
Metal Mechanics - 15 15 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley Solid State Controls
Questions? Call (847) 360-9170 and mention DCM-3841.
Features & Accessories
- Air Safety Ratchet
- Dual Pull-Out Bar Operation
- T-Slotted Moving and Bed Platens
- Allen Bradley PLC Controls
- Full Electrical and Hydraulic Documents including Schematics
Item Specifications for DCM-3841
| US | Metric | |
| Model: | 15 | 15 |
| Pressing Tonnage: | 15 tons | 13.60 tons |
| Number of Columns: | 4 | 4 |
| Column Diameter: | 2.5 inches | 63.5 mm |
| Daylight: | 25.5 inches | 647.7 mm |
| Stroke: | 12 inches | 304.8 mm |
| Shut Height: | 13.5 inches | 342.9 mm |
| Clearance between Tie Bars (Left to Right): | 28.5 inches | 723.9 mm |
| Clearance between Tie Bars (Front to Back): | 18.5 inches | 469.9 mm |
| Bed Size (Left to Right by Front to Back): | 38 x 28 inches | 965.2 x 711.2 mm |
| Cut out Size in Bed: | 6 Inch Diameter | 152 Inch Diameter |
| Approximate Footprint (L/R x F/B): | 56 x 46 inches | 1422.4 x 1168.4 mm |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – HPM 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine DCM-3802
- Sold – Rimrock 305 Ladle with Triangle Controller DCM-3848
- Sold – Rimrock 410 Reciprocating Die Sprayer with ABB IRC Extractor Combo DCM-3849
- Sold – Rimrock 24 x 124 inch mesh belt type indexing conveyor DCM-3873
- Sold – Thermtronix LRS-650 395 Pound Per Hour Electric Heated Aluminum Melting Holding Crucible Furnace DCM-3881
- Sold – Thermtronix Model: Silicon Carbide Crucible for Thermtronix LRS-650 Furnace 650 Pound Capacity Electric Heated Silicon Carbide Crucible Type Aluminum Melting Furnace DCM-3916
Description
Used, Metal Mechanics Model 15 15 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet, Dual Pull-Out Bar Operation, T-Slotted Moving and Bed Platens, Allen Bradley PLC Controls, Full Electrical and Hydraulic Documents including Schematics, Allen Bradley Solid State controls, second Hand, DCM-3841
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
