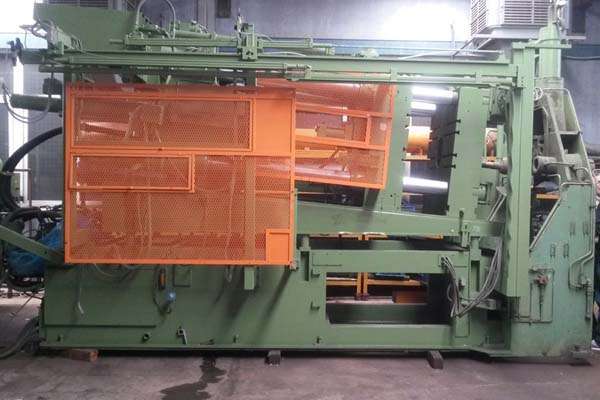

Used Idra Model: OL 560 MG 560 Metric Ton Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine

StatusSold
ManufacturerIdra
ModelOL 560 MG
Size560 Metric Ton
Inventory NumberDCM-3732

Idra - OL 560 MG 560 Metric Ton Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine, Controls

View Available Hot Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3732.

Features & Accessories

  • Fully Automatic Top Helper Side Tie Bar Pulling System
  • Electric Motorized Die Height Adjustment
  • Twin Cylinder Hydraulic Bumper Plate Ejection System
  • Auxiliary Hydraulic Side Core Circuit
  • Hydraulic Nozzle Clamping System/Sprue Break
  • Automatic Lubrication System - Pressurized Oil Type

Item Specifications for DCM-3732

USMetric
Locking Force:660 Tons5980 KN
Tie Bar Diameter:5.51 inches140 mm
Clearance Between Tie Bars:27.95 inches710 mm
Die Thickness (minimum - maximum):13.77 - 32.48 inches350 - 825 mm
Die Stroke (maximum):29.92 inches760 mm
Moving Platen Size:41.92 x 41.92 inches1065 x 1065
Shot Positions:center to -3.93 inchescenter to -100 mm
Injection Stroke:9.06 inches230 mm

Description

Used, Idra Model OL 560 MG 560 Metric Ton Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine For_Sale, Features Include: Fully Automatic Top Helper Side Tie Bar Pulling System, Electric Motorized Die Height Adjustment, Twin Cylinder Hydraulic Bumper Plate Ejection System, Auxiliary Hydraulic Side Core Circuit, Hydraulic Nozzle Clamping System/Sprue Break, Automatic Lubrication System - Pressurized Oil Type, controls, second Hand, DCM-3732

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
