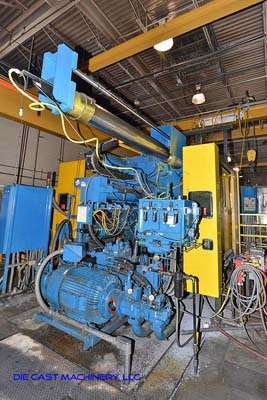

Used Prince Model: 1446 CCA 1600 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 16| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 1446 CCA |
| Size | 1600 Ton |
| Inventory Number | DCM-3226 |
Prince - 1446 CCA 1600 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Allen Bradley Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3226.
Features & Accessories
- New in 2007
- Prince Fully Automatic Top Operator Side Tie Bar Pulling System
- Prince Individual Die Bar Tonnage Adjustment System with Electronic Tie Bar Strain Gauging and Monitoring System
- Hydraulic Powered Motorized Die Height Adjustment System
- Twin Cylinder Hydraulic Bumper Plate Ejection System
- Prince Close Coupled Closed-Loop Shot Control System with Low-Impact Shot Capabilities
- Complete Cell with Striko Westoffen W1200 SL ProDos Dosing Furnace; ABB 7600 Six Axis Foundry Plus Heavy Payload Industrial Robot, Rimrock Model 410 Die Sprayer with Epic Controls and dual lube capabilities, Large bed 75 ton four post die cast trim press
Item Specifications for DCM-3226
| US | Metric | |
| Rated Tonnage: | 1600 tons | 1451.50 metric tons |
| Tie Bar Diameter: | 9.5 inches | 241.3 mm |
| Clearance Between Tie bars: | 46.5 x 46.5 inches | 1181.1 x 1181.1 mm |
| Front Platen Size (T x W x H): | 17.25 x 75 x 85 inches | 438.15 x 1905 x 2159 mm |
| Moving Platen Size (T x W x H): | 15.75 x 75 x 75 inches | 400.05 x 1905 x 1905 mm |
| Die Thickness (min. - max.): | 24 inches - 44 inches | 609.6 mm - 1117.6 mm |
| Die Stroke: | 30 inches | 762 mm |
| Ejection Stroke: | 6 inches | 152.4 mm |
| Ejection Force: | 30 tons | 27.22 metric tons |
| Motor Size: | 125 hp | 93.25 kw |
| Machine Size (L x W x H): | 38 x 10 x 13 feet | 11.58 x 3.05 x 3.96 m |
| Machine Weight: | 180,000 pounds | 81646.63 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Dake 100 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-3225
- Sold – Striko Westofen 1700 kg Low Energy Electric Heated Aluminum Holding and Dosing Furnace DCM-3227
- Sold – Rimrock 410-60 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations DCM-3228
- Sold – ABB 2.400 Meter Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings DCM-3229
Video
Description
Used, Prince Model 1446 CCA 1600 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Prince Fully Automatic Top Operator Side Tie Bar Pulling System, Prince Individual Die Bar Tonnage Adjustment System with Electronic Tie Bar Strain Gauging and Monitoring System, Hydraulic Powered Motorized Die Height Adjustment System, Twin Cylinder Hydraulic Bumper Plate Ejection System, Prince Close Coupled Closed-Loop Shot Control System with Low-Impact Shot Capabilities, Complete Cell with Striko Westoffen W1200 SL ProDos Dosing Furnace; ABB 7600 Six Axis Foundry Plus Heavy Payload Industrial Robot, Rimrock Model 410 Die Sprayer with Epic Controls and dual lube capabilities, Large bed 75 ton four post die cast trim press, Allen Bradley controls, second Hand, DCM-3226
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
