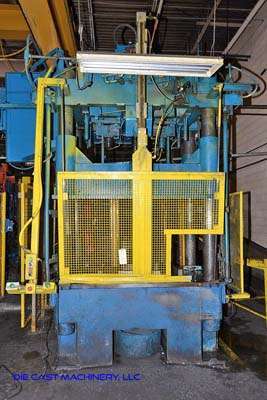

Used Dake Model: 100 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Dake |
| Size | 100 Ton |
| Inventory Number | DCM-3225 |
Dake - 100 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, GE-Fanuc 90-30 series PLC Controls
Questions? Call (847) 360-9170 and mention DCM-3225.
Features & Accessories
- Air Safety Ratchet
- Drill & Tapped Bed and Moving Platen
- Dual Palm Buttons Operation
- Mechanical Ejector Bars
- Top Mounted Hydraulics
Item Specifications for DCM-3225
| US | Metric | |
| Model: | N/A | N/A |
| Pressing Tonnage: | 100 tons | 90.72 tons |
| Number of Columns: | 4 | 4 |
| Tie Bar Diameter: | 6.5 inches | 165 mm |
| Daylight: | 48 inches | 1219.2 mm |
| Stroke: | 26 inches | 660.4 mm |
| Shut Height: | 22 inches | 558.8 mm |
| Clearance between Tie Bars (Left to Right): | 60 inches | 1524 mm |
| Clearance between Tie Bars (Front to Back): | 31 inches | 787.4 mm |
| Bed Size (Left to Right by Front to Back): | 77 x 47 inches | 1955.8 x 1193.8 mm |
| Cut out Size in Bed: (L/R x F/B) | 18 x 10 inches | 457.2 x 254 mm |
| Overall Size: | 11 x 8 x 13 feet | 3.35 x 2.43 x 3.96 meters |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Prince Model: 1446 CCA 1600 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine DCM-3226
- Sold – Striko Westofen Model: W 1700 SL ProDos 1700 kg Low Energy Electric Heated Aluminum Holding and Dosing Furnace DCM-3227
- Sold – Rimrock Model: 410 410-60 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations DCM-3228
- Sold – ABB Model: IRB 7700 2.400 Meter Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings DCM-3229
Description
Used, Dake Model 100 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet, Drill & Tapped Bed and Moving Platen, Dual Palm Buttons Operation, Mechanical Ejector Bars, Top Mounted Hydraulics, GE-Fanuc 90-30 series PLC controls, second Hand, DCM-3225
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
