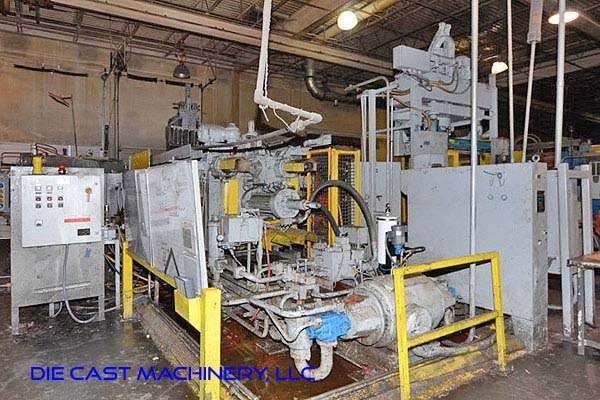

Used HPM Model: II-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 10| Status | Sold |
|---|---|
| Manufacturer | HPM |
| Model | II-800-A |
| Size | 800 Ton |
| Inventory Number | DCM-3221 |
HPM - II-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3221.
Features & Accessories
- Electric Motorized Die Height Adjustment System
- Air Safety Ratchet and One (1) Auxiliary Hydraulic Side Core Circuit
- Hydraulic Bumper Plate Ejection System
- Trabon Automatic Linkage Lubrication System
- Manual Helper Side Safety Door
- Power Operator Side Safety Door
Item Specifications for DCM-3221
| US | Metric | |
| Locking Force: | 800 tons | 725 tons |
| Tie Bar Diameter: | 7 inches | 177 mm |
| Clearance Between Tie Bars: | 34 x 34 inches | 863 x 863 mm |
| Die Thickness (minimum - maximum): | 14 - 38 inches | 355 - 965 mm |
| Die Stroke (minimum - maximum): | 14 - 24 inches | 355 - 609 mm |
| Moving Platen Size (H x V x T): | 55 x 55 x 11 inches | 1397 x 1397 x 279 mm |
| Shot Positions: | Center,-3, -6, inches below center | 0, -76, -152 mm below center |
| Shot Intensification: | Multiplier Cylinder w/Piston Bottle | Multiplier Cylinder w/Piston Bottle |
| Cylinder Stroke: | 20 - 26 inches | 508 - 660 mm |
| Power: | 60 HP | 44.76 hp |
| Machine Size: | 8.3 x 27.4 feet | 2.53 x 8.35 meters |
| Machine Weight: | 79,000 pounds | 35,833 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Reis 65 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-3220
- Sold – Striko Westofen 900 kg Low Energy Electric Heated Aluminum Holding and Dosing Furnace DCM-3222
- Sold – Rimrock 410-60 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations DCM-3223
Description
Used, HPM Model II-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment System, Air Safety Ratchet and One (1) Auxiliary Hydraulic Side Core Circuit, Hydraulic Bumper Plate Ejection System, Trabon Automatic Linkage Lubrication System, Manual Helper Side Safety Door, Power Operator Side Safety Door, Allen Bradley SLC 5/03 controls, second Hand, DCM-3221
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
