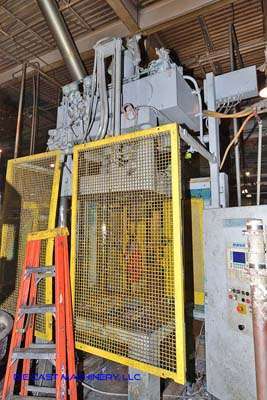

Used Reis Trim Press Model: SEP 10-65 D111 65 Metric Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 7| Status | Sold |
|---|---|
| Manufacturer | Reis Trim Press |
| Model | SEP 10-65 D111 |
| Size | 65 Metric Ton |
| Inventory Number | DCM-3220 |
Reis Trim Press - SEP 10-65 D111 65 Metric Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press, Siemens CPU 315-20P Controls
Questions? Call (847) 360-9170 and mention DCM-3220.
Features & Accessories
- Air Safety Ratchet
- T-Slotted Moving and Bed Platens
- Automatic Lubrication System
- Fixed Ejector Plate
- Top Mounted Hydraulics
Item Specifications for DCM-3220
| US | Metric | |
| Pressing Tonnage: | 73 tons | 65 metric tons |
| Number of Columns: | 3 | 3 |
| Column Diameter: | 5 inches | 127 mm |
| Daylight: | 36 inches | 914 mm |
| Stroke: | 24 inches | 609 mm |
| Shut Height: | 12 inches | 305 mm |
| Clearance between Tie Bars (Left to Right): | 39 inches | 991 mm |
| Clearance between Tie Bars (Front to Back): | 27 inches | 686 mm |
| Bed Size (Left to Right by Front to Back): | 53 x 43 inches | 1346 x 1092 mm |
| Cut out Size in Bed: (L/R x F/B): | 31 x 23 inches | 787 x 584 mm |
| Overall Size (L x w x H): | 9 x 5 x 16 | 2.7 x 1.5 x 4.9 meters |
| Estimate Machine Weight: | 14,330 lbs | 6,500kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – HPM Model: II-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine DCM-3221
- Sold – Striko Westofen Model: W 900 SL ProDos 900 kg DCM-3222
- Sold – Rimrock Model: E- 410 410-60 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations DCM-3223
Documents
- Reis Trim Presses CatalogPDF · 1.6 MB
Description
Used, Reis Trim Press Model SEP 10-65 D111 65 Metric Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet, T-Slotted Moving and Bed Platens, Automatic Lubrication System, Fixed Ejector Plate, Top Mounted Hydraulics, Siemens CPU 315-20P controls, second Hand, DCM-3220
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
