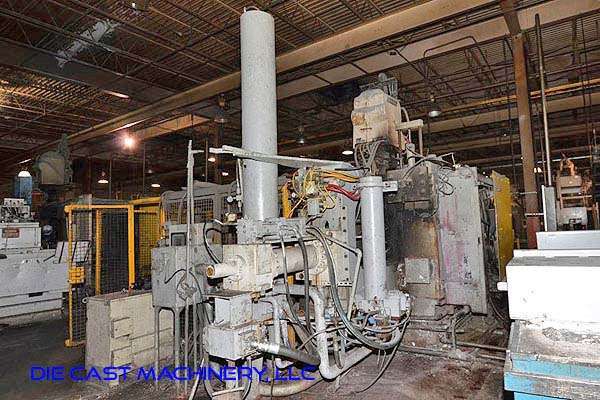

Used Ex-Cell-O B&T Model: DC-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 14| Status | Sold |
|---|---|
| Manufacturer | Ex-Cell-O B&T |
| Model | DC-800-A |
| Size | 800 Ton |
| Inventory Number | DCM-3209 |
Ex-Cell-O B&T - DC-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/03 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3209.
Features & Accessories
- Two (2) Auxiliary Hydraulic Moving Core Circuits and Twin Cylinder Hydraulic Bumper Plate
- Multiplier Cylinder with Piston Bottle and Air Safety Ratchet
- Electric Motorized Die Height Adjustment System and Trabon Automatic Linkage Lubrication System
- Top Helper Side Automatic Tie Bar Puller
- Power Operator Side Safety Door
- Manual Helper Side Safety Door
Item Specifications for DCM-3209
| US | Metric | |
| Locking Force: | 800 tons | 725.75 tons |
| Tie Bar Diameter: | 7 inches | 177.8 mm |
| Clearance between Tie Bars (H x V): | 35 x 35 inches | 889 x 889 mm |
| Moving Platen Size (H x V x T): | 48 x 48 x 9 inches | 1219 x 1219 x 228 mm |
| Stationary (Fixed) Platen Size (H x V x T): | 53 x 48 x 10 inches | 1346 x 1219 x 254 mm |
| Die Thickness (minimum to maximum): | 12 - 36 inches | 304 - 914 mm |
| Die Stroke: | 16 - 22 inches | 406 - 558 mm |
| Shot Cylinder Stroke: | 22 - 27 inches | 558 - 685 mm |
| Shot Positions: | Center, -6 & - 9 inches below center | 0, -152, -228 mm below center |
| Power: | 480/3/60 | 480/3/60 |
| Overall Size (W x L x H): | 8 x 26 x 9.2 feet | 2.13 x 6.1 x 2.74 meters |
| Approximate Weight: | 72,000 pounds | 27,215 KG |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Metal Mechanics 50 ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-3208
- Sold – Thermaltek 2000 Pound Low Energy High Efficiency Electric Heated Aluminum Holding Furnace DCM-3210
- Sold – Rimrock 410-60 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations DCM-3211
- Sold – ABB 2.40-120 Meter Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings DCM-3212
Description
Used, Ex-Cell-O B&T Model DC-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Two (2) Auxiliary Hydraulic Moving Core Circuits and Twin Cylinder Hydraulic Bumper Plate, Multiplier Cylinder with Piston Bottle and Air Safety Ratchet, Electric Motorized Die Height Adjustment System and Trabon Automatic Linkage Lubrication System, Top Helper Side Automatic Tie Bar Puller, Power Operator Side Safety Door, Manual Helper Side Safety Door, Allen Bradley PLC 5/03 controls, second Hand, DCM-3209
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
