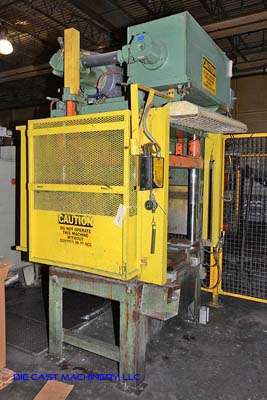

Used Metal Mechanics Model: 50 ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 12| Status | Sold |
|---|---|
| Manufacturer | Metal Mechanics |
| Size | 50 ton |
| Inventory Number | DCM-3208 |
Metal Mechanics - 50 ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley SLC 501 Controls
Questions? Call (847) 360-9170 and mention DCM-3208.
Features & Accessories
- Air Safety Ratchet
- T-Slotted Bed and Moving Platen
- Dual Palm Buttons Operation
- Light Curtains
- Top Mounted Hydraulics
- Fixed Ejector Plate System
Item Specifications for DCM-3208
| US | Metric | |
| Model: | 50-T | 50-T |
| Pressing Tonnage: | 50 Ton | 45.36 tons |
| Number of Columns: | 4 | 4 |
| Column Diameter: | 3.5 inches | 88.9 mm |
| Daylight: | 34 inches | 863.6 mm |
| Stroke: | 18 inches | 457.2 mm |
| Shut Height: | 15 inches | 381 mm |
| Clearance between Tie Bars (Left to Right): | 48 inches | 1219.2 mm |
| Clearance between Tie Bars (Front to Back): | 25 inches | 635 mm |
| Bed Size (Left to Right by Front to Back): | 58 x 25 inches | 1473.2 x 635 mm |
| Cut out Size in Bed: (L/R x F/B) | 6 x 6 inches | 152.4 x 152.4 mm |
| Overall Size: | 7.4 x 6 x 10 feet | 2255.52 x 1828.8 x 3048 mm |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Ex-Cell-O B&T Model: DC-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine DCM-3209
- Sold – Thermaltek Model: Thermaltek EL-2000 2000 Pound Low Energy High Efficiency Electric Heated Aluminum Holding Furnace DCM-3210
- Sold – Rimrock Model: 410 410-60 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations DCM-3211
- Sold – ABB Model: IRB 6400 2.40-120 Meter Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings DCM-3212
Description
Used, Metal Mechanics Model 50 ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet, T-Slotted Bed and Moving Platen, Dual Palm Buttons Operation, Light Curtains, Top Mounted Hydraulics, Fixed Ejector Plate System, Allen Bradley SLC 501 controls, second Hand, DCM-3208
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
