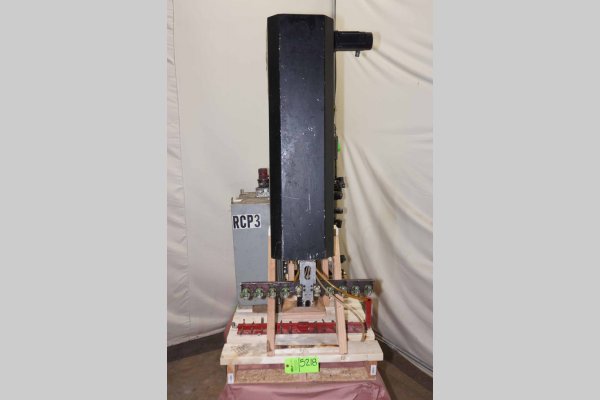

Used Rimrock Model: 414 Linear Sprayer 414 Inches of vertical stroke Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations
1 / 14| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Rimrock |
| Model | 414 Linear Sprayer |
| Size | 414 Inches of vertical stroke |
| Inventory Number | DCM-5218 |
Rimrock - 414 Linear Sprayer 414 Inches of vertical stroke Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations, Controls
View Available Automation (Die Cast)
Questions? Call (847) 360-9170 and mention DCM-5218.
Features & Accessories
- Fully programmable, servo drive controlled reciprocator using the auto-teach mode via Rimrock Epic Control
- Platen mounted pedestal support with manual swing-out for ease of die change
- Custom spray manifold with single lube capability and air blow off
- Up to ten spray positions with intermediary sweeps
- Rugged but compact design
Item Specifications for DCM-5218
| US | Metric | |
| Vertical Stroke: | 36 inches | 1524 mm |
| Maximum Speed: | 80 inches per second | 2032 mmi per second |
| Drive Motor: | Brushless Servo Motor | Brushless Servo Motor |
| Programmable Spray Positions: | 10 | 10 |
| Maximum Spray Nozzles (026 & 032): | 6 or 12 | 6 or 12 |
| Lube Control: | Single Lube with blow-off | Single Lube with blow-off |
| Power Requirements: | 120/1/60 | 120/1/60 |
Documents
- Rimrock 414 Servo Drive ReciprocatorPDF · 302 KB
- Rimrock 414 Reciprocator ManualPDF · 29.6 MB
- Rimrock 414 Reciprocator DrawingPDF · 1.1 MB
Description
Used, Rimrock Model 414 Linear Sprayer 414 Inches of vertical stroke Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations For_Sale, Features Include: Fully programmable, servo drive controlled reciprocator using the auto-teach mode via Rimrock Epic Control, Platen mounted pedestal support with manual swing-out for ease of die change, Custom spray manifold with single lube capability and air blow off, Up to ten spray positions with intermediary sweeps, Rugged but compact design, controls, second Hand, DCM-5218
