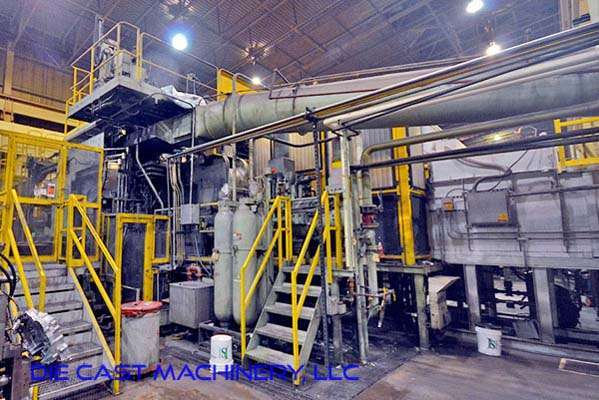

Used Toshiba Model: DC-1650-CL 1650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 10| Status | Sold |
|---|---|
| Manufacturer | Toshiba |
| Model | DC-1650-CL |
| Size | 1650 Metric Ton |
| Inventory Number | DCM-3021 |
Toshiba - DC-1650-CL 1650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Toshiba PLC Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3021.
Features & Accessories
- Manufactured New in 1985
- Dual Fully Automated Tie Bar Pulling on Top and Bottom Operator Side Tie Bars
- Automatic Lubrication System with Monitoring System
- Two Speed Hydraulic Motorized Die Height via central Bull Gear
- Toshiba PLC Controls
- C-Frame Shot End with Close Coupled Accumulators and Shot Intensifier
- Hydraulic Bumper Plate Ejection System
Item Specifications for DCM-3021
| US | Metric | |
| Clamping Force: | 1,815 Tons | 1650 Tons |
| Clearance Between Tie Bars (H x V) | 51 x 59 inches | 1300 x 1500 mm |
| Tie Bar Diameter: | 11 inches | 280 mm |
| Platen Dimensions: | 81.1 x 89 inches | 2060 x 2260 mm |
| Die Thickness (minimum - maximum): | 27.55 - 66.9 inches | 700 - 1700 mm |
| Die Stroke: | 39.38 inches | 1000 mm |
| Injection Force: | 93 to 168 tons | 85 to 153 tons |
| Injection Stroke: | 47.25 inches | 1200 mm |
| Shot Positions: | 13.78 inches below Center | 350 mm below Center |
| Ejector Plate Stroke: | .78 - 7.8 inches | 20 - 200 mm |
| Machine Size: | 43 x 13 x 14 feet | 13.11 x 3.96 x 4.27 meters |
| Machine Weight: | 308,000 lbs | 139,706 kg |
Video
Documents
- Front Platen DrawingPDF · 8.4 MB
Description
Used, Toshiba Model DC-1650-CL 1650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Dual Fully Automated Tie Bar Pulling on Top and Bottom Operator Side Tie Bars, Automatic Lubrication System with Monitoring System, Two Speed Hydraulic Motorized Die Height via central Bull Gear, Toshiba PLC Controls, C-Frame Shot End with Close Coupled Accumulators and Shot Intensifier, Hydraulic Bumper Plate Ejection System, Toshiba PLC controls, second Hand, DCM-3021
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
