SOLD

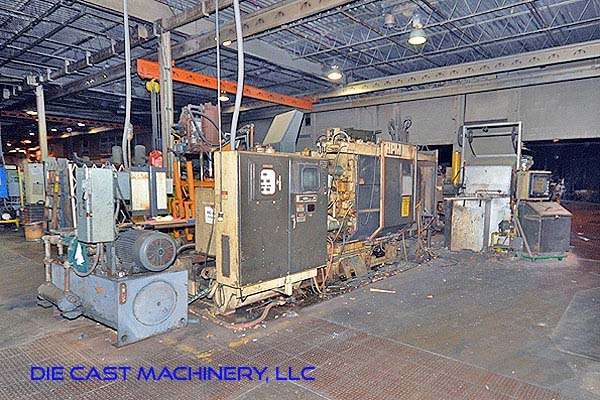

Used HPM Model: II-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerHPM
ModelII-600-A
Size600 Ton
Inventory NumberDCM-2946

HPM - II-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Barber Coleman PLC Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-2946.

Features & Accessories

  • Barber Coleman PLC Controls
  • Hydraulic Motorized Die Height
  • Air Safety Ratchet
  • Hydraulic Center Platen Ejection
  • Trabon Automatic Linkage Lubrication System
  • Hydraulic Center Platen Ejection

Item Specifications for DCM-2946

USMetric
Locking Force:600 tons545 tons
Tie Bar Diameter:6 inches736 mm x 736 mm
Clearance Between Tie Bars:29 x 29 inches736 mm x 736 mm
Die Thickness (minimum - maximum):14 - 36 inches355 mm - 914 mm
Die Stroke (minimum - maximum):12 - 18 inches304 mm - 457 mm
Moving Platen Size:48 x 48 inches1219 mm x 1219 mm
Shot Positions:Center, -6 & -9 inches below center0, -152 & -228 mm below center
Cylinder Stroke:19 - 23 inches482 mm - 584 mm
Power:480/3/60480/3/60
Machine Size:7.1 x 26.2 feet2.2 x 8 m
Machine Weight:57,000 pounds21,274 kg

Description

Used, HPM Model II-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Barber Coleman PLC Controls, Hydraulic Motorized Die Height, Air Safety Ratchet, Hydraulic Center Platen Ejection, Trabon Automatic Linkage Lubrication System, Hydraulic Center Platen Ejection, Barber Coleman PLC controls, second Hand, DCM-2946

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
