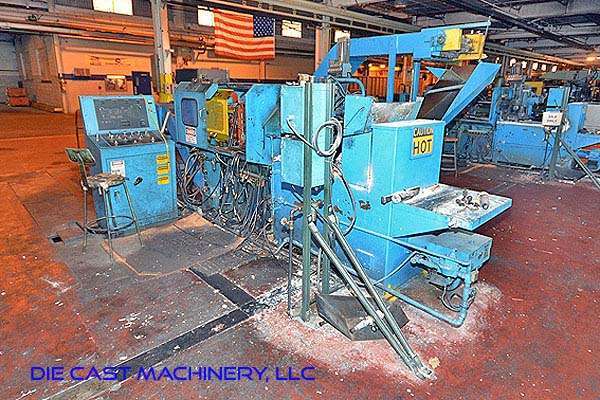

Used National Model: H-55-ZX 65 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine
1 / 22| Status | Sold |
|---|---|
| Manufacturer | National |
| Model | H-55-ZX |
| Size | 65 Ton |
| Inventory Number | DCM-2943 |
National - H-55-ZX 65 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen Bradley SLC 5/03 SLC Controls
View Available Hot Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2943.
Features & Accessories
- Vector Forcelock Die Cast Machine
- Hydraulic Bumper Plate Ejection
- Single Point Manual Die Height Adjustment
- Air Safety Ratchet
- Allen-Bradley SLC 5/03 SLC Controls
- Bijur Automatic Linkage Lubrication System;
- Mechanical Dial Tie Bar Strain Gauges
Item Specifications for DCM-2943
| US | Metric | |
| Clamping Force: | 64.8 tons | 58.7 tons |
| Clamping Cylinder Diameter: | 2.5 inches | 63.5 mm |
| Tie Bar Centers (V x H): | 14.5 x 16.4 inches | 368 x 416 mm |
| Tie Bar Diameter: | 2.25 inches | 57 mm |
| Distance Between Tie Bars (V x H): | 12.25 x 12.25 | 311 x 311 mm |
| Fixed Platen Dimensions: | 22.25 x 19 x 4 inches | 565 x 482 x 101 mm |
| Moving Platen Dimension: | 21 x 19 x 4 inches | 533 x 482 x 101 mm |
| Die Height (minimum - maximum): | 5 - 14 inches | 127 - 355 mm |
| Motor Rating: | 7.5 HP | 5.59 KW |
| Machine Size: | 16.6 x 4.3 x 6 feet | 5 x 1.3 x 1.8 meters |
| Machine Weight: | 8,750 pounds | 3,968 KG |
Video
Description
Used, National Model H-55-ZX 65 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Bumper Plate Ejection, Single Point Manual Die Height Adjustment, Air Safety Ratchet, Allen-Bradley SLC 5/03 SLC Controls, Bijur Automatic Linkage Lubrication System;, Mechanical Dial Tie Bar Strain Gauges, Allen Bradley SLC 5/03 SLC controls, second Hand, DCM-2943
