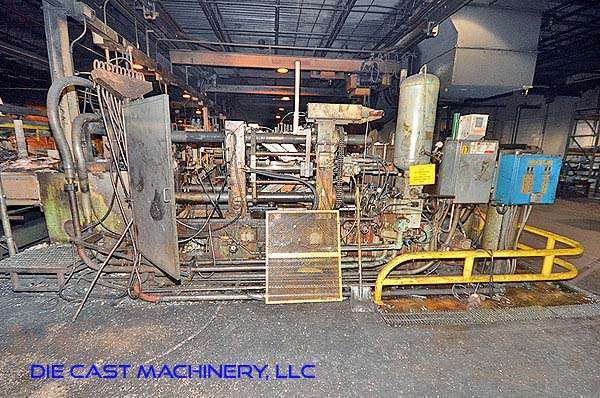

Used Kux-Wickes Model: BH-400 400 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine
1 / 20| Status | Sold |
|---|---|
| Manufacturer | Kux-Wickes |
| Model | BH-400 |
| Size | 400 Ton |
| Inventory Number | DCM-2942 |
Kux-Wickes - BH-400 400 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen Bradley Controls
View Available Hot Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2942.
Features & Accessories
- Electric Motorized Die Height Adjustment
- Hydraulic Center Platen Ejection
- Automatic Linkage Lubrication System
- Adjustable Die Stroke
Item Specifications for DCM-2942
| US | Metric | |
| Clamping (Locking) Force: | 400 tons | 362 tons |
| Tie Bar Diameter: | 5 inches | 127 mm |
| Tie Bar Clearance: | 21.75 x 21.75 inches | 552 x 552 mm |
| Fixed Platen: | 40.5 x 40.5 x 8 inches | 1028 x 1028 x 203 mm |
| Moving Platen: | 40.5 x 40.5 x 8 inches | 1028 x 1028 x 203 mm |
| Die Thickness (minimum to maximum): | 10 - 28 inches | 254 - 711 mm |
| Die Stroke: | 12 inches | 304 mm |
| Horsepower: | 30 HP | 22.38 KW |
| Shot Positions: | Center | Center |
| Machine Size: | 20 x 6 x 7 feet | 6.1 x 1.83 x 2.13 meters |
| Machine Weight: | 34,500 pounds | 15,648 kg |
Video
Description
Used, Kux-Wickes Model BH-400 400 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment, Hydraulic Center Platen Ejection, Automatic Linkage Lubrication System, Adjustable Die Stroke, Allen Bradley controls, second Hand, DCM-2942
