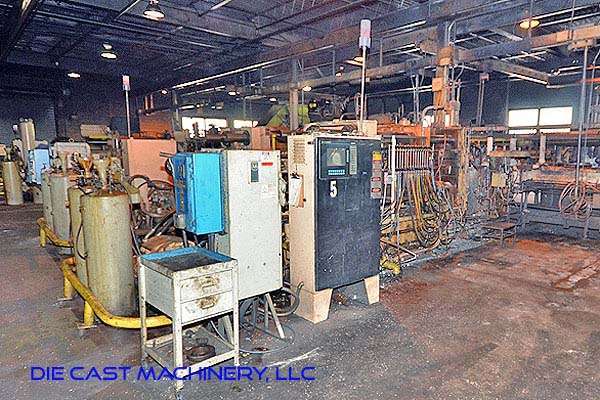

Used Kux-Wickes Model: BH-600 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

StatusSold
ManufacturerKux-Wickes
ModelBH-600
Size600 Ton
Inventory NumberDCM-2938

Kux-Wickes - BH-600 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen-Bradley PLC 5/20 PLC Controls

View Available Hot Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-2938.

Features & Accessories

  • Remanufactured By HPM In November 1992
  • Air Safety Ratchet Bar
  • Hydraulic Center Platen Ejection
  • Electric Motorized Die Height Adjustment
  • Allen-Bradley PLC 5/20 PLC Controls
  • Hydraulic Nozzle Clamping System
  • Automatic Linkage Lubrication System

Item Specifications for DCM-2938

USMetric
Clamping (Locking) Force:600 tons544 tons
Tie Bar Diameter:6 inches152 mm
Tie Bar Clearance:28 x 28 inches711 x 711 mm
Fixed Platen:49 x 49 x 10 inches1244 x 1244 x 254 mm
Moving Platen:49 x 49 x 10 inches1244 x 1244 x 254 mm
Die Thickness (minimum to maximum):12 - 36 inches304 - 914 mm
Die Stroke:18 inches457 mm
Horsepower:50 HP37.3 KW
Shot Positions:Center and -6 inches below centerCenter and -152 mm below Center
Machine Size:28 x 7 x 7.5 feet8.5 x 2.13 x 2.29 meters
Machine Weight:51,500 pounds23,360 kg

Description

Used, Kux-Wickes Model BH-600 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Air Safety Ratchet Bar, Hydraulic Center Platen Ejection, Electric Motorized Die Height Adjustment, Allen-Bradley PLC 5/20 PLC Controls, Hydraulic Nozzle Clamping System, Automatic Linkage Lubrication System, Allen-Bradley PLC 5/20 PLC controls, second Hand, DCM-2938

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
