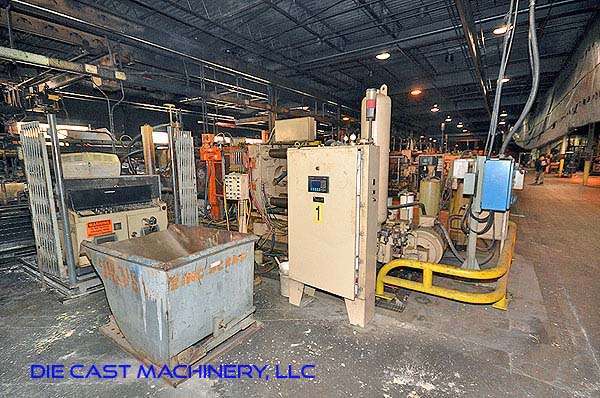

Used HPM Model: D 600 Z 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

StatusSold
ManufacturerHPM
ModelD 600 Z
Size600 Ton
Inventory NumberDCM-2936

HPM - D 600 Z 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen-Bradley SLC 5/03 Controls

View Available Hot Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-2936.

Features & Accessories

  • HPM Cast Master
  • Air Safety Ratchet
  • Hydraulic Center Platen Ejection
  • Trabon Automatic Linkage Lubrication System
  • Allen-Bradley SLC 5/03 SLC Controls
  • Hydraulic Nozzle Clamping System
  • Adjustable Die Stroke

Item Specifications for DCM-2936

USMetric
Locking Force:600 tons544 tons
Tie Bar Diameter:6 inches152 mm
Clearance Between Tie Bars:28 x 28 inches711 x 711 mm
Die Thickness (minimum - maximum):12 - 38 inches304 - 965 mm
Die Stroke (minimum - maximum):11 to 18 inches279 - 457 mm
Moving Platen Size (T x V x H):8.5 x 46 x 46 inches215 x 1168 x 1168 mm
Shot Positions:CenterCenter
Shot Cylinder Stroke:10 inches254 mm
Power:60 HP44.76 kw
Machine Size:222 x 7 x 9 feet44.76 kw
Machine Weight:52,000 pounds23,586 kg

Description

Used, HPM Model D 600 Z 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Air Safety Ratchet, Hydraulic Center Platen Ejection, Trabon Automatic Linkage Lubrication System, Allen-Bradley SLC 5/03 SLC Controls, Hydraulic Nozzle Clamping System, Adjustable Die Stroke, Allen-Bradley SLC 5/03 controls, second Hand, DCM-2936

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
