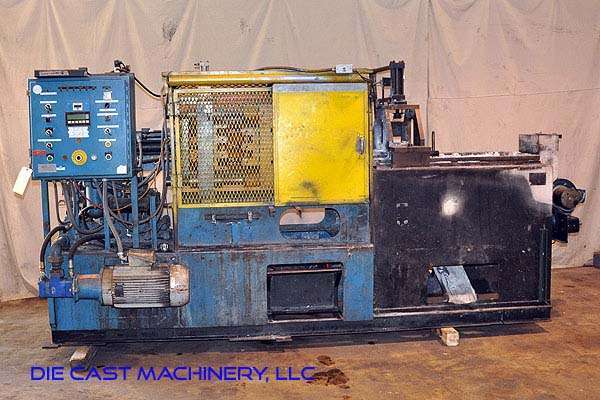

Used DTI - American Model: 150 Z 150 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

StatusSold
ManufacturerDTI - American
Model150 Z
Size150 Ton
Inventory NumberDCM-2868

DTI - American - 150 Z 150 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen Bradley Controls

View Available Hot Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-2868.

Item Specifications for DCM-2868

USMetric
Clamping (Locking) Force:150 tons136 tons
Tie Bar Diameter:2.5 inches63.5 mm
Tie Bar Clearance:15 x 15 inches381 x 381 mm
Fixed Platen:22 x 22 inches558.8 x 558.8 mm
Die Height (minumum to maximum):6 to 19 inches152 to 482 mm
Die Thickness:4 inches101 mm
Shot Cylinder Stroke:6 inches152 mm
Shot Positions:Center and 3 inches belowCenter and 76 mm below
Machine Size:12 x 3.6 x 6 feet3.6 x 1.1 x 1.8 meters
Machine Weight:9000 pounds4082 kg

Description

Used, DTI - American Model 150 Z 150 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include:, Allen Bradley controls, second Hand, DCM-2868

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
