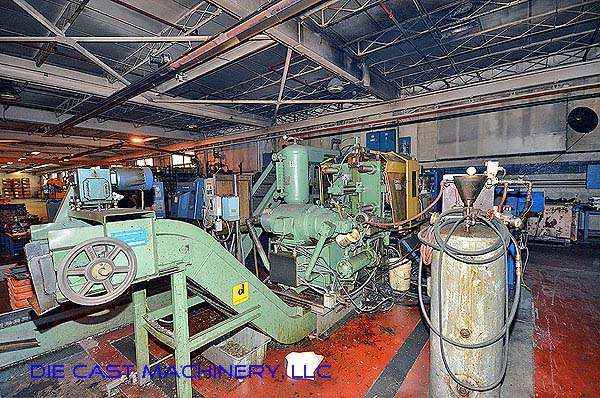

Used Kux-Wickes Model: BH 200 200 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

StatusSold
ManufacturerKux-Wickes
ModelBH 200
Size200 Ton
Inventory NumberDCM-2790

Kux-Wickes - BH 200 200 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen Bradley Controls

View Available Hot Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-2790.

Features & Accessories

  • Rebuilt by Birch Machinery
  • Air Safety Ratchet
  • Hydraulic Center Platen Ejection
  • Bijur Automatic Linkage Lubrication System
  • Center and -4 Inch Shot Positions

Item Specifications for DCM-2790

USMetric
Clamping (Locking) Force:200 tons181 tons
Tie Bar Diameter:3.5 inches88.9 mm
Tie Bar Clearance:18 x 18 inches457 x 457 mm
Fixed Platen:30 x 30 x 6 inches762 x 762 x 152 mm
Moving Platen:30 x 30 x 6 inches30 x 30 x 6 inches
Die Thickness (minimum to maximum):10 - 24 inches254 - 609 mm
Die Stroke:10 inches254 mm
Horsepower:20 HP14.9 KW
Shot Positions:Center and -4 inches below centerCenter and -101.6 mm below center
Machine Size:15 x 5 x 6 feet4.5 x 1.5 x 1.8 meters
Machine Weight:18,500 pounds8,391 kg

Description

Used, Kux-Wickes Model BH 200 200 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Air Safety Ratchet, Hydraulic Center Platen Ejection, Bijur Automatic Linkage Lubrication System, Center and -4 Inch Shot Positions, Allen Bradley controls, second Hand, DCM-2790
