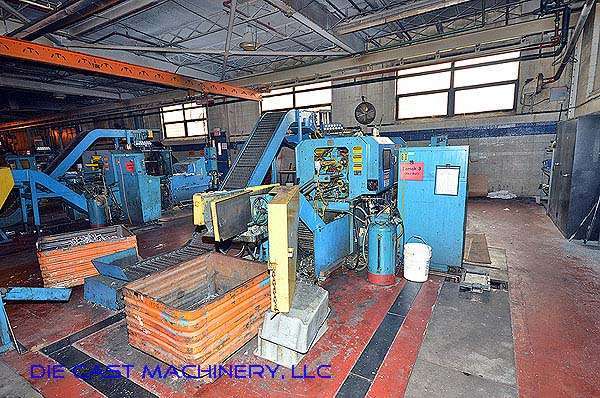

Used National Model: H-55-ZX 65 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

StatusSold
ManufacturerNational
ModelH-55-ZX
Size65 Ton
Inventory NumberDCM-2789

National - H-55-ZX 65 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen-Bradley SLC 5/03 SLC Controls

View Available Hot Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-2789.

Features & Accessories

  • Vector-Lock Die Cast Machine
  • Allen-Bradley SLC 5/03 SLC Controls
  • Air Safety Ratchet
  • Hydraulic Bumper Plate Ejection
  • Single Point Manual Die Height Adjustment
  • Bijur Automatic Linkage Lubrication System
  • Natural Gas Melting and Holding Furnace; Under Mount Quench Tank, with Incline Conveyor Outfeed

Item Specifications for DCM-2789

USMetric
Clamping Force:64.8 tons58.7 tons
Clamping Cylinder Diameter:2.5 inches63.5 mm
Tie Bar Centers (V x H):14.5 x 16.4 inches368 x 416 mm
Tie Bar Diameter:2.25 inches57 mm
Distance Between Tie Bars (V x H):12.25 x 12.25311 x 311 mm
Fixed Platen Dimensions:22.25 x 19 x 4 inches565 x 482 x 101 mm
Moving Platen Dimension:21 x 19 x 4 inches533 x 482 x 101 mm
Die Height (minimum - maximum):5 - 14 inches127 - 355 mm
Motor Rating:7.5 HP5.59 KW
Machine Size:16.6 x 4.3 x 6 feet5 x 1.3 x 1.8 meters
Machine Weight:8,750 pounds3,968 KG

Description

Used, National Model H-55-ZX 65 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Allen-Bradley SLC 5/03 SLC Controls, Air Safety Ratchet, Hydraulic Bumper Plate Ejection, Single Point Manual Die Height Adjustment, Bijur Automatic Linkage Lubrication System, Natural Gas Melting and Holding Furnace; Under Mount Quench Tank, with Incline Conveyor Outfeed, Allen-Bradley SLC 5/03 SLC controls, second Hand, DCM-2789

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
