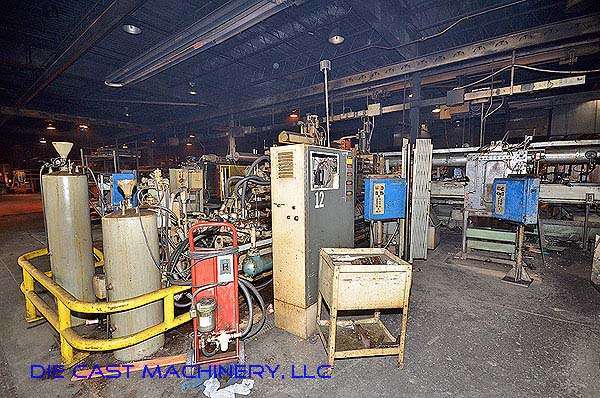

Used Alpha Model: 600-Z 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

StatusSold
ManufacturerAlpha
Model600-Z
Size600 Ton
Inventory NumberDCM-2786

Alpha - 600-Z 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen-Bradley PLC 5/20 PLC Controls

View Available Hot Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-2786.

Features & Accessories

  • Remanufactured By HPM In August 1993
  • Allen-Bradley PLC 5/20 PLC Controls
  • Hydraulic Nozzle Clamping System
  • Air Safety Ratchet
  • Hydraulic Center Platen Ejection
  • Trabon Modu-Flo Automatic Linkage Lubrication System

Item Specifications for DCM-2786

USMetric
Factory Rated Tonnage:600 tons544 tons
Tie Bar Diameter:6 inches152 mm
Clearance Between Tie Bars:28 x 28 inches736 x 736 mm
Moving Platen Size (T x W x H):49 x 49 x 10 inches1244 x 1244 x 254 mm
Die Thickness (min. - max.):12 - 32 inches304 - 812 mm
Die Stroke:17 inches431 inches
Tie Bar Centers:35 x 35 inches889 x 889 inches
Shot Positions:CenterCenter
Machine Size:25 x 8 x 9 feet7.6 x 2.4 x 2.7 meters
Machine Weight:60,000 pounds27,215 kg

Description

Used, Alpha Model 600-Z 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Allen-Bradley PLC 5/20 PLC Controls, Hydraulic Nozzle Clamping System, Air Safety Ratchet, Hydraulic Center Platen Ejection, Trabon Modu-Flo Automatic Linkage Lubrication System, Allen-Bradley PLC 5/20 PLC controls, second Hand, DCM-2786
