SOLD

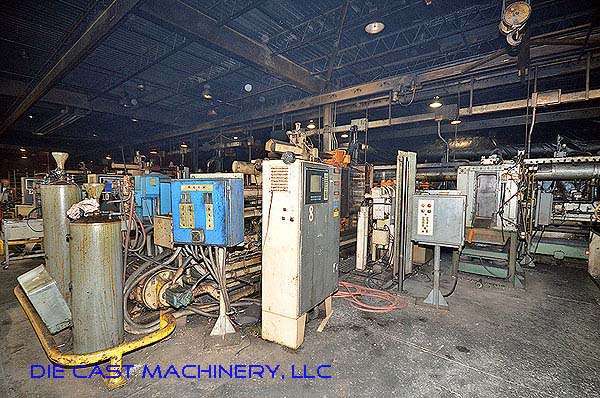

Used Ex-Cell-O B&T Model: 600-Z 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

StatusSold
ManufacturerEx-Cell-O B&T
Model600-Z
Size600 Ton
Inventory NumberDCM-2784

Ex-Cell-O B&T - 600-Z 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen-Bradley PLC 5/20 PLC Controls

View Available Hot Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-2784.

Features & Accessories

  • Remanufactured By HPM In June 1993
  • Electric Motorized Die Height Adjustment
  • Air Safety Ratchet Device
  • Hydraulic Center Platen Ejection
  • Hydraulic Nozzle Clamping System
  • Allen-Bradley PLC 5/20 PLC Controls
  • Trabon Automatic Linkage Lubrication System

Item Specifications for DCM-2784

USMetric
Factory Rated Tonnage:600 tons544 tons
Tie Bar Diameter:6 inches152 mm
Clearance Between Tie Bars:29 x 29 inches736 x 736 mm
Moving Platen Size (T x W x H):49 x 49 x 10 inches1244 x 1244 x 254 mm
Die Thickness (min. - max.):12 - 32 inches304 - 812 mm
Die Stroke:17 inches431 inches
Tie Bar Centers:35 x 35 inches889 x 889 inches
Shot Positions:CenterCenter
Machine Size:25 x 8 x 9 feet7.6 x 2.4 x 2.7 meters
Machine Weight:60,000 pounds27,215 kg

Description

Used, Ex-Cell-O B&T Model 600-Z 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment, Air Safety Ratchet Device, Hydraulic Center Platen Ejection, Hydraulic Nozzle Clamping System, Allen-Bradley PLC 5/20 PLC Controls, Trabon Automatic Linkage Lubrication System, Allen-Bradley PLC 5/20 PLC controls, second Hand, DCM-2784

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
