SOLD

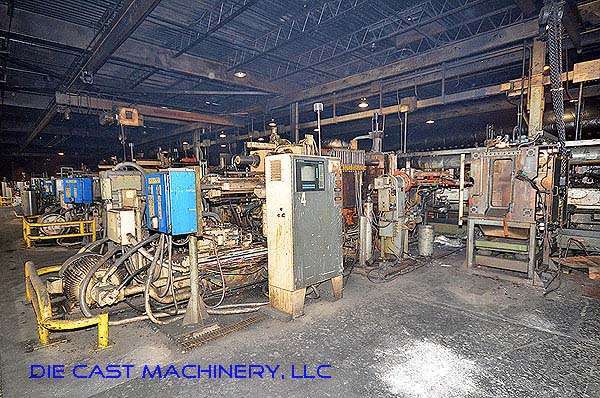

Used Ex-Cell-O B&T Model: 600-A 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

StatusSold
ManufacturerEx-Cell-O B&T
Model600-A
Size600 Ton
Inventory NumberDCM-2782

Ex-Cell-O B&T - 600-A 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen-Bradley PLC 5/20 PLC Controls

View Available Hot Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-2782.

Features & Accessories

  • Rebuilt By HPM In June 1993
  • Hydraulic Nozzle Clamping System
  • Air Safety Ratchet Device
  • Electric Motorized Die Height
  • Hydraulic Center Platen Ejection
  • Allen Bradley PLC 5/20 PLC Controls
  • Hydraulic Nozzle Clamping Cylinders

Item Specifications for DCM-2782

USMetric
Factory Rated Tonnage:600 tons544 tons
Tie Bar Diameter:6 inches152 mm
Clearance Between Tie Bars:29 x 29 inches736 x 736 mm
Moving Platen Size (T x W x H):49 x 49 x 10 inches1244 x 1244 x 254 mm
Die Thickness (min. - max.):12 - 32 inches304 - 812 mm
Die Stroke:17 inches431 inches
Tie Bar Centers:35 x 35 inches889 x 889 inches
Shot Positions:Center and -6 inches below centerCenter and -152 mm below center
Machine Size:25 x 8 x 9 feet7.6 x 2.4 x 2.7 meters
Machine Weight:60,000 pounds27,215 kg

Description

Used, Ex-Cell-O B&T Model 600-A 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Nozzle Clamping System, Air Safety Ratchet Device, Electric Motorized Die Height, Hydraulic Center Platen Ejection, Allen Bradley PLC 5/20 PLC Controls, Hydraulic Nozzle Clamping Cylinders, Allen-Bradley PLC 5/20 PLC controls, second Hand, DCM-2782

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
