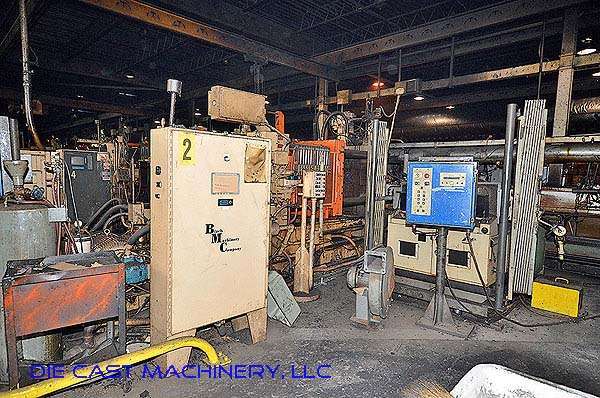

Used Kux-Wickes Model: BH-600 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine
1 / 8| Status | Sold |
|---|---|
| Manufacturer | Kux-Wickes |
| Model | BH-600 |
| Size | 600 Ton |
| Inventory Number | DCM-2781 |
Kux-Wickes - BH-600 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen-Bradley SLC 5/03 SLC Controls
View Available Hot Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2781.
Features & Accessories
- Rebuilt by Birch Machinery in April 2000
- Hydraulic Nozzle Clamping System
- Electric Motorized Die Height
- Air Safety Ratchet
- Hydraulic Center Platen Ejection
- Equipped with Allen-Bradley SLC 5/03 SLC Controls
Item Specifications for DCM-2781
| US | Metric | |
| Clamping (Locking) Force: | 600 tons | 544 tons |
| Tie Bar Diameter: | 6 inches | 152 mm |
| Tie Bar Clearance: | 28 x 28 inches | 711 x 711 mm |
| Fixed Platen: | 49 x 49 x 10 inches | 1244 x 1244 x 254 mm |
| Moving Platen: | 49 x 49 x 10 inches | 1244 x 1244 x 254 mm |
| Die Thickness (minimum to maximum): | 12 - 36 inches | 304 - 914 mm |
| Die Stroke: | 18 inches | 457 mm |
| Horsepower: | 50 HP | 37.3 KW |
| Shot Positions: | Center | Center |
| Machine Size: | 28 x 7 x 7.5 feet | 8.5 x 2.13 x 2.29 meters |
| Machine Weight: | 51,500 pounds | 23,360 kg |
Description
Used, Kux-Wickes Model BH-600 600 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Nozzle Clamping System, Electric Motorized Die Height, Air Safety Ratchet, Hydraulic Center Platen Ejection, Equipped with Allen-Bradley SLC 5/03 SLC Controls, Allen-Bradley SLC 5/03 SLC controls, second Hand, DCM-2781
