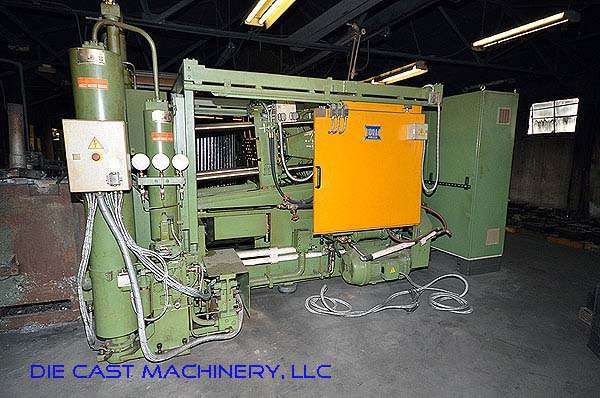

Used Idra Model: OLZ 125 110 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine
1 / 24| Status | Sold |
|---|---|
| Manufacturer | Idra |
| Model | OLZ 125 |
| Size | 110 Metric Ton |
| Inventory Number | DCM-2779 |
Idra - OLZ 125 110 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen Bradley Controls
View Available Hot Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2779.
Features & Accessories
- Never Been Used
Item Specifications for DCM-2779
| US | Metric | |
| Locking Force: | 125 tons | 110 tons |
| Tie Bar Diameter: | 2.95 inches | 75 mm |
| Clearance Between Tie Bars: | 15.75 inches | 400 mm |
| Die Thickness (Minimum to Maximum): | 7 - 19.6 inches | 180 - 500 mm |
| Moving Platen Stroke: | 15.75 mm | 400 mm |
| Platen Dimensions: | 23.8 x 23.8 inches | 605 x 605 mm |
| Maximum Injection Force: | 8.2 tons | 73 KN |
| Ejection Force: | 10.5 tons | 94 KN |
| Motor Rating: | 20.39 hp | 15 KW |
| Machine Size: | 15.9 x 4.4 x 7.6 feet | 4.8 x 1.3 x 2.3 meters |
| Machine Weight: | 7.6 tons | 6.9 tons |
Video
Description
Used, Idra Model OLZ 125 110 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include:, Allen Bradley controls, second Hand, DCM-2779
