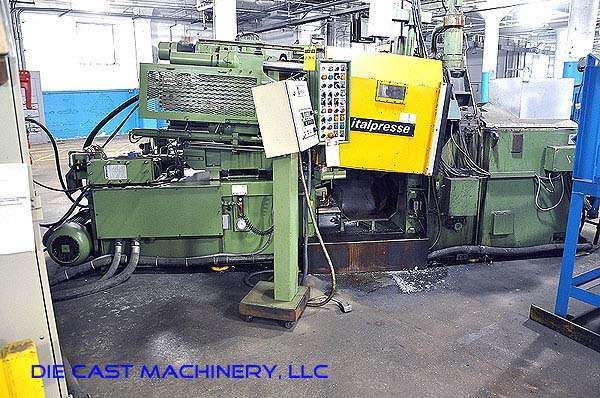

Used Italpresse Model: IPZ 130 130 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

StatusSold
ManufacturerItalpresse
ModelIPZ 130
Size130 Metric Ton
Inventory NumberDCM-2628

Italpresse - IPZ 130 130 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen Bradley Model SLC 5/03 Solid State Control Controls

View Available Hot Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-2628.

Features & Accessories

  • This Machine was a Research Machine and has Extremely Low Hours
  • Acheson DAG High Speed Linear Automatic Die Sprayer with remote mixing tank
  • Electrically Heated Machine Melting and Holding Furnace
  • Electric Motorized Die Height Adjustment System
  • Dropsa Automatic Oil Type Lubrication System
  • Power Operator Side Safety Door
  • CE Certified

Item Specifications for DCM-2628

USMetric
Locking Force:143 tons130 tons
Injection Force:9.5 tons8.62 tons
Ejection Force:10.4 tons9.43 tons
Tie Bar Diameter:3.14 inches80 mm
Clearance Between Tie Bars:16.53 x 16.53 inches420 x 420 mm
Die Height (minimum - maximum):6.29 - 19.29 inches170 - 490 mm
Platens Dimensions:25.59 x 25.59 inches650 x 650 mm
Moving Platen Stroke:14.96 inches380 mm
Central Ejection Stroke:3.54 inches90 mm
Motor:20 HP15 KW
Weight:18,739 pounds8,517.72 KG
Machine Dimensions (L x W x H):15 x 7-3/4 x 5 feet4.57 x 2.36 x 1.52 meters

Video

Description

Used, Italpresse Model IPZ 130 130 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Acheson DAG High Speed Linear Automatic Die Sprayer with remote mixing tank, Electrically Heated Machine Melting and Holding Furnace, Electric Motorized Die Height Adjustment System, Dropsa Automatic Oil Type Lubrication System, Power Operator Side Safety Door, CE Certified, Allen Bradley Model SLC 5/03 Solid State Control controls, second Hand, DCM-2628

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
