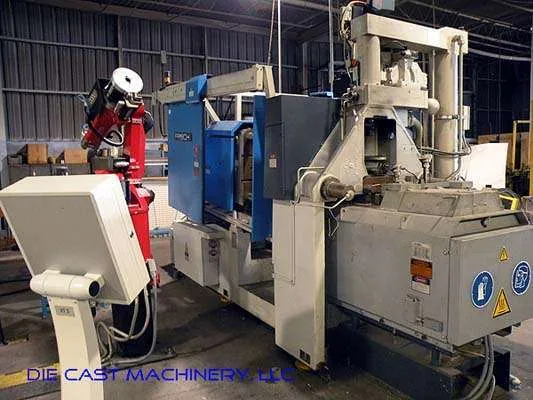

Used Frech Model: DAW 200S DCRC 220 Metric Ton
1 / 11| Status | Sold |
|---|---|
| Manufacturer | Frech |
| Model | DAW 200S DCRC |
| Size | 220 Metric Ton |
| Inventory Number | DCM-2240 |
Frech - DAW 200S DCRC 220 Metric Ton , Frech Data Controls
View Available Hot Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2240.
Features & Accessories
- Machine only has 4,500 cycle
- Fully Proportional hydraulics, Automatic Lubrication System
- Central Electric Powered Motorized Die Height Adjustment
- Frech Spraymotion 611E Die Lube Sprayer, Melt-Tec two chamber melting & Holding Furnace and Reis RV6 Six Axis Extractor
- A-Frame Shot System with two Shot Positions with Frech DCRC Servo Controlled Real Time Shot System
- Automatic (powered) Operator side safety door
Item Specifications for DCM-2240
| US | Metric | |
| Clamping Force | 243 tons | 220 tons |
| Die Thickness (Minimum - Maximum) | 9.84 to 23.62 inches | 250 to 600 mm |
| Platen Dimensions (Horizontal x Vertical) | 29.72 x 29.72 inches | 755 x 755 mm |
| Clearance Between Tie Bars | 19.68 x 19.68 inches | 500 x 500 mm |
| Tie Bar Diameter | 3.34 inches | 85 mm |
| Closing Stroke | 16.93 inches | 430 mm |
| Maximum Injection Force | 14.30 tons | 12.97 tons |
| Injection Plunger Diameter | 2.75, 3.14, and 3.54 inches | 70, 80, and 90 mm |
| Ejector Force | 12.1 tons | 11 tons |
| Ejector Stroke | 3.93 inches | 100 mm |
| Dry Cycles per Hour (DIN 24480) | 780 | 780 |
| Weight of Machine | 17,600 pounds | 8,000 KG |
Video
Description
Used, Frech Model DAW 200S DCRC 220 Metric Ton For_Sale, Features Include: Fully Proportional hydraulics, Automatic Lubrication System, Central Electric Powered Motorized Die Height Adjustment, Frech Spraymotion 611E Die Lube Sprayer, Melt-Tec two chamber melting & Holding Furnace and Reis RV6 Six Axis Extractor, A-Frame Shot System with two Shot Positions with Frech DCRC Servo Controlled Real Time Shot System, Automatic (powered) Operator side safety door, Frech Data controls, second Hand, DCM-2240
