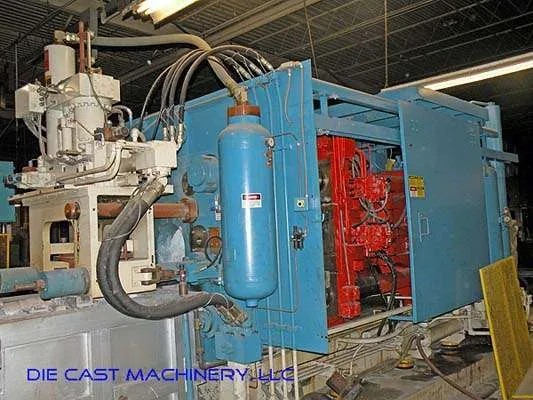

Used HPM Model: II-800-Z 800 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine
1 / 22| Status | Sold |
|---|---|
| Manufacturer | HPM |
| Model | II-800-Z |
| Size | 800 Ton |
| Inventory Number | DCM-2195 |
HPM - II-800-Z 800 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Allen Bradley Controls
View Available Hot Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2195.
Features & Accessories
- Only 350 hours since Rebuild
- New Allen Bradley 5/05 PLC Control Panel with Panel View Plus 1500
- Visi-trak System, Robot and Sprayer Interfaces
- Complete Linkage Rebuild
- Power Operator Side Door
- Rebuild of Guide Bars and Cross Head
- Avaliable at additional cost Furnace and Goosenecks, Kawasaki Robot and New Advance Sprayer (Not installed)
Item Specifications for DCM-2195
| US | Metric | |
| Locking Force: | 800 tons | 725 tons |
| Tie Bar Diameter: | 7 inches | 177 mm |
| Clearance Between Tie Bars (H x V): | 34 x 34 inches | 863 x 863 mm |
| Die Thickness: | 12 inches | 304 mm |
| Die Stroke (minimum - maximum): | 14 - 24 inches | 355 - 609 mm |
| Shot Cylinder Diameter: | 4.63 inches | 117 mm |
| Shot Stroke: | 10 inches | 254 mm |
| Ejection Force (initial): | 10.5 tons | 9.53 tons |
| Ejection Stroke: | 5 inches | 127 mm |
| Power: | 75 HP | 55.95 Kw |
| Machine Size (L x W x H): | 22.9 x 8.3 x 11 feet | 6.98 x 2.53 x 3.35 meters |
| Machine Weight: | 79,000 pounds | 35,833 KG |
Video
Description
Used, HPM Model II-800-Z 800 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: New Allen Bradley 5/05 PLC Control Panel with Panel View Plus 1500, Visi-trak System, Robot and Sprayer Interfaces, Complete Linkage Rebuild, Power Operator Side Door, Rebuild of Guide Bars and Cross Head, Avaliable at additional cost Furnace and Goosenecks, Kawasaki Robot and New Advance Sprayer (Not installed), Allen Bradley controls, second Hand, DCM-2195
