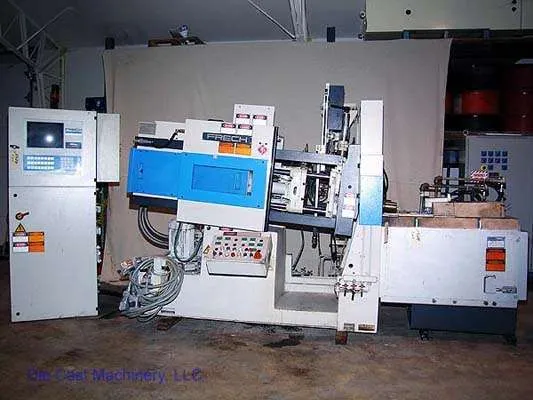

Used Frech Model: DAW 20 S DCRC 240 kN Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine
1 / 11| Status | Sold |
|---|---|
| Manufacturer | Frech |
| Model | DAW 20 S DCRC |
| Size | 240 kN |
| Inventory Number | DCM-1528 |
Frech - DAW 20 S DCRC 240 kN Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Frech Data Controls
View Available Hot Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-1528.
Features & Accessories
- Very Low Hours
- Frech Real-Time Shot Control
- Automatic Die Height Adjustment
- Auxiliary Core Circuits
- Frech Servo Controlled Die Spray System
- MelTec Two Chamber Electric Melting Furnace
- CE Certified
Item Specifications for DCM-1528
| US | Metric | |
| Clamping Force: | 26 tons | 240 kN |
| Die Thickness (Minimum - Maximum): | 4.72 - 11.81 inches | 120 - 300 mm |
| Platen Dimensions (horizontal x vertical): | 14.96 x 15.16 inches | 380 x 385 mm |
| Clearance between tie bars: | 9.84 inches | 250 mm |
| Tie Bar Diameter: | 1.77 inches | 45 mm |
| Closing Stroke: | 4.13 inches | 105 mm |
| Maximum Injection Force: | 4.5 tons | 40 kN |
| Injection Plunger Diameter: | 1.42, 1.57, 1.77 inches | 36, 40, 45 mm |
| Casting Volume: | 15.35, 22.05, 31.1 inches | 39, 56, 79 cm3 |
| Ejector Force: | 3.3 tons | 30 kN |
| Ejector Stroke: | 1.97 inches | 50 mm |
| Dry Cycles per Hour (DIN 24480) | 2,000 | 2,000 |
Video
Description
Used, Frech Model DAW 20 S DCRC 240 kN Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Frech Real-Time Shot Control, Automatic Die Height Adjustment, Auxiliary Core Circuits, Frech Servo Controlled Die Spray System, MelTec Two Chamber Electric Melting Furnace, CE Certified, Frech Data controls, second Hand, DCM-1528
