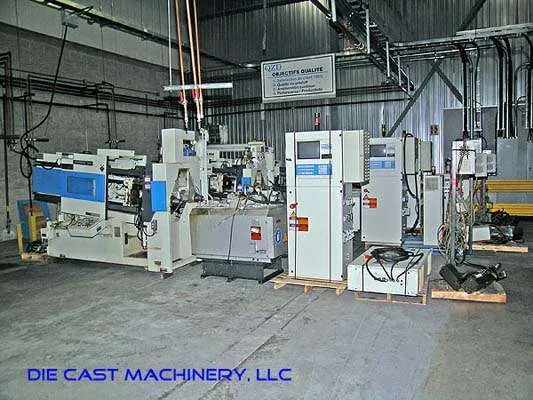

Used Frech Model: DAW 50 S DCRC 600 kN Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

StatusSold
ManufacturerFrech
ModelDAW 50 S DCRC
Size600 kN
Inventory NumberDCM-1526

Frech - DAW 50 S DCRC 600 kN Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Frech Data Controls

View Available Hot Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-1526.

Features & Accessories

  • Very Low Hours
  • Frech Real-Time Shot Control
  • Automatic Die Height Adjustment
  • Axillary Core Circuits
  • Frech Servo Controlled Die Spray System
  • CE Certified
  • MelTec two chamber electric melting furnace

Item Specifications for DCM-1526

USMetric
Clamping Force:67.44 tons600 kN
Die Thickness (minimum - maximum):4.72 - 13.78 inches120 - 350 mm
Platen Dimensions (horizontal x vertical):18.11 x 18.11 inches460 x 460 mm
Clearance between tie bars:11.81 inches300 mm
Tie Bar Diameter:2.2 inches56 mm
Closing Stroke:5.91 inches150 mm
Injection Force:6.18 tons55 kN
Injection Plunger Diameter:1.77, 1.97, 2.17 inches45, 50, 55 mm
Casting Volume:29.92, 47.64, 64.96 cubic inches76, 121, 165 cm3
Ejector Force:4.5 tons40 kN
Ejector Stroke:2.76 inches70 mm
Dry Cycles per Hour (DIN 24480)1,3001,300

Video

Description

Used, Frech Model DAW 50 S DCRC 600 kN Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Frech Real-Time Shot Control, Automatic Die Height Adjustment, Axillary Core Circuits, Frech Servo Controlled Die Spray System, CE Certified, MelTec two chamber electric melting furnace, Frech Data controls, second Hand, DCM-1526

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
