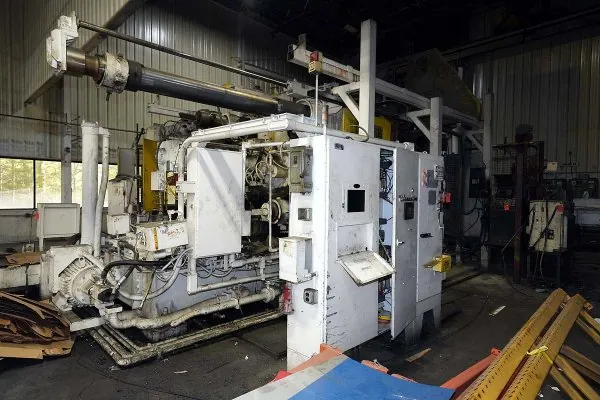

Used Prince Model: 1651 CCA 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 27| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 1651 CCA |
| Size | 1600 Ton |
| Inventory Number | DCM-6316 |
Prince - 1651 CCA 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/04 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-6316.
Features & Accessories
- Price includes contents of cell, ABB robot ladle, ABB robot extractor, Rimrock Die Spray , trim press
- Inserted Shot Position - Multi-Shot Location Capability, Top Operator Side Fully Automatic Tie Bar Pulling System
- Four (4) Auxiliary Hydraulic Core Circuits on Moving Platen
- Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Tonnage Adjustment System and Electronic Strain Gauges
- Twin Cylinder Hydraulic Bumper Plate Ejection
- Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Tonnage Adjustment System and Electronic Strain Gauges, Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Tonnage Adjustment System and Electronic Strain Gauge
Item Specifications for DCM-6316
| US | Metric | |
| Rated Tonnage | 1600 tons | 1454 tons |
| Tie Bar Diameter | 11 inches | 279.4 mm |
| Clearance Between Tie bars | 51 inches | 1295.4 mm |
| Front Platen Size (T x W x H) | 19.75 x 83 x 96 inches | 501.65 x 2108.2 x 2438.4 mm |
| Moving Platen Size (T x W x H) | 18.75 x 83 x 83 inches | 476.25 x 2108.2 x 2108.2 mm |
| Die Thickness (min. - max.) | 22 - 58 inches | 965.2 - 1473.2 mm |
| Die Stroke | 32 inches | 812.8 mm |
| Shot Positions: | Inserted & Adjustable | Inserted & Adjustable |
| Motor Size | 100 hp | 74.6 kw |
| Machine Size (L x W x H) | 40 x 11 x 12 feet | 12.1 x 3.3 x 3.6 m |
| Machine Weight | 250,000 pounds | 113,636.36 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Automatic Shot Sleeve Hone DCM-6320
- DAN TEST 334 10KW Dan Size Test To See if this will let me save a larger input in this field DCM-6321
- Metal Mechanics Model: TP-50 50 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-5921
- Sold – Robamat Hot Water Model: Thermocast 2212 36 kw (18 kW per zone) Dual (two) Zone Portable Hot Water Process Heater Temperature control Unit DCM-5981
Description
Used, Prince Model 1651 CCA 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Inserted Shot Position - Multi-Shot Location Capability, Top Operator Side Fully Automatic Tie Bar Pulling System, Four (4) Auxiliary Hydraulic Core Circuits on Moving Platen, Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Tonnage Adjustment System and Electronic Strain Gauges, Twin Cylinder Hydraulic Bumper Plate Ejection, Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Tonnage Adjustment System and Electronic Strain Gauges, Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Tonnage Adjustment System and Electronic Strain Gauge, Allen Bradley SLC 5/04 controls, second Hand, DCM-6316
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
