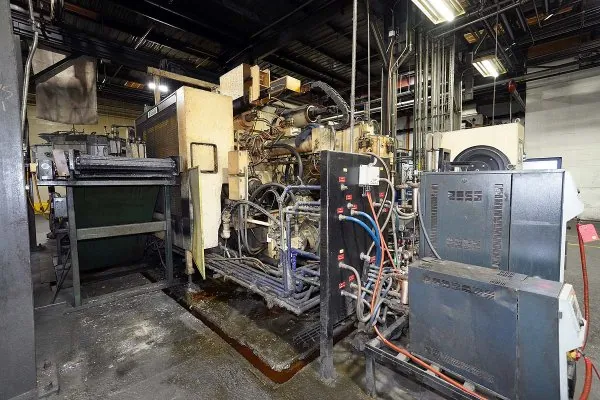

Used Prince Model: 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 16| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Prince |
| Model | 1246 CCA |
| Size | 1200 Ton |
| Inventory Number | DCM-6277 |
Prince - 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC Controls Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-6277.
Features & Accessories
- Pace DCM #67. Quote Price is for the Complete Die Casting Cell including Die Cast Machine, Striko Dosing Furnace, Fanuc Robot Die Sprayer, Fanuc Robot Extractor Metal Mechanics Trim Press.
- Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Adjustment and Electronic Stain Gauges
- Prince Binary II Shot Control System with Low Impact System, Close-Coupled Piston Accumulator Bottles and Piston Bottle Intensification
- Twin Cylinder Hydraulic Bumper Plate Ejection System, Top Helper Side Automatic Top Automatic Tie Bar Puller System
- Automatic Lubrication System
- Four (4) Auxiliary Hydraulic Side-Core Circuits
Item Specifications for DCM-6277
| US | Metric | |
| Rated Tonnage: | 1200 tons | 1088 tons |
| Tie Bar Diameter: | 9.5 inches | 241 mm |
| Clearance between Tie Bars: | 46.5 x 46.5 inches | 1181 x 1181 mm |
| Front Platen Size (T x W x H): | 17.75 x 75 x 85 inches | 450 x 1778 x 2032 mm |
| Moving Platen Size (T x W x H): | 15.75 x 75 x 75 inches | 400 x 1905 x 1905 mm |
| Die Thickness (minimum to maximum): | 24 - 44 inches | 609 - 1117 mm |
| Die Stroke: | 30 inches | 762 mm |
| Shot Position Standard: | Center to -12 inches below | Center to -304 mm below |
| Shot Cylinder Stroke: | 30 - 36 inches | 762 - 914 mm |
| Motor Size: | 100 and 15 HP | 75 Kw and 11 Kw |
| Machine Size (L x W x H): | 36 x 9 x 13 feet | 10.97 x 2.74 x 3.96 meters |
| Machine Weight: | 165,000 pounds | 75,000 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Trim Press DCM-6261
- Fanuc Sprayer Robot DCM-6278
- Fanuc Extractor Robot DCM-6279
- Aluminum Dosing Furnace DCM-6280
Description
Used, Prince Model 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Adjustment and Electronic Stain Gauges, Prince Binary II Shot Control System with Low Impact System, Close-Coupled Piston Accumulator Bottles and Piston Bottle Intensification, Twin Cylinder Hydraulic Bumper Plate Ejection System, Top Helper Side Automatic Top Automatic Tie Bar Puller System, Automatic Lubrication System, Four (4) Auxiliary Hydraulic Side-Core Circuits, Allen Bradley PLC Controls controls, second Hand, DCM-6277
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
