SOLD

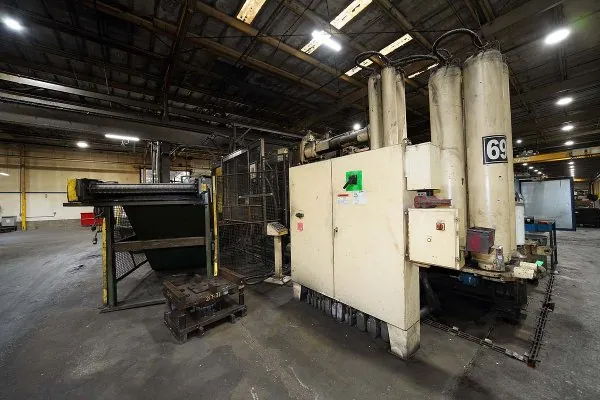

Used HPM Model: II-1800-A 1800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerHPM
ModelII-1800-A
Size1800 Ton
Inventory NumberDCM-6201

HPM - II-1800-A 1800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Solid State Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-6201.

Features & Accessories

  • Pace DCM #69
  • Air Safety Ratchet, Hydraulic Motorized Die Height Adjustment
  • Hydraulic Bumper Plate Ejection System
  • Three (3) Core Circuits - Two (2) on moving platen, one (1) on stationary platen
  • Dual Automatic Tie Bar Puller on Top Operator Side and Top Helper Side Tie Bars
  • Olmsted Servo Shot Control System with Visi-Trak Shot Control and Monitoring

Item Specifications for DCM-6201

USMetric
Locking Force:1800 tons1633 tons
Tie Bar Diameter:11 inches279.4 mm
Clearance Between Tie Bars (H x V):54 inches x 54 inches1371 mm x 1371 mm
Die Thickness (minimum - maximum):27 - 64 inches685 - 1625 mm
Die Stroke (minimum - maximum):24 - 36 inches609 - 914 mm
Shot Cylinder Diameter:8.5 inches215 mm
Shot Stroke:34 - 40 inches863 - 1016 mm
Ejection Force:51.2 inches1300 mm
Ejection Stroke:8 inches203 mm
Power:130 hp96.98 Kw
Machine Size (L x W):46.5 x 11.5 feet14.2 x 3.5 meters
Machine Weight:280,000 pounds104,508 kg

Description

Used, HPM Model II-1800-A 1800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Air Safety Ratchet, Hydraulic Motorized Die Height Adjustment, Hydraulic Bumper Plate Ejection System, Three (3) Core Circuits - Two (2) on moving platen, one (1) on stationary platen, Dual Automatic Tie Bar Puller on Top Operator Side and Top Helper Side Tie Bars, Olmsted Servo Shot Control System with Visi-Trak Shot Control and Monitoring, Allen Bradley SLC 5/03 Solid State controls, second Hand, DCM-6201

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
