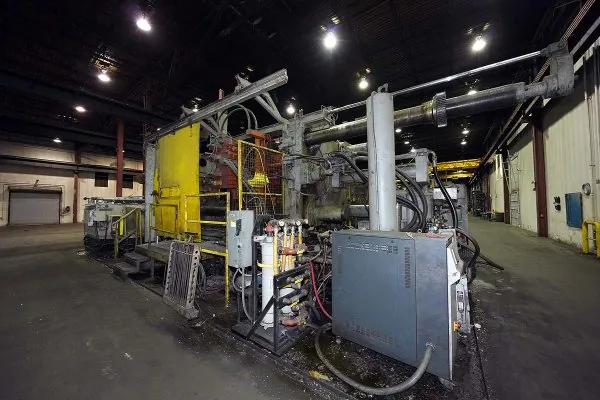

Used Ex-Cell-O B&T Model: DC-1600-A 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used Ex-Cell-O B&T Model: DC-1600-A 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 18
StatusSold
ManufacturerEx-Cell-O B&T
ModelDC-1600-A
Size1600 Ton
Inventory NumberDCM-6146

Ex-Cell-O B&T - DC-1600-A 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/30 Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDF

Questions? Call (847) 360-9170 and mention DCM-6146.

Features & Accessories

  • Ex-Cell-O B&T 1600 Ton Cold Chamber Die Cast Machine Rebuilt with New Prince Binary II Shot System
  • Allen Bradley Model 5-30 PLC Control with LCD Display
  • Top Helper Side Automatic Tie Bar Pulling System
  • Center Hydraulic Ejection and Twin Cylinder Hydraulic Bumper Plate Ejection Systems
  • Two Core Circuits on Moving Platen and One Core Circuit on Front Platen
  • Inserted Shot Position (Shot Block) with Center, -2, -12 & -14 below center shot positions
  • New Prince Binary II shot System with 4500 PSI Intensifier circuit

Item Specifications for DCM-6146

USMetric
Rated Tonnage16001454
Tie Bar Diameter11 inches279.4 mm
Clearance Between Tie bars51 inches1295.4 mm
Front Platen Size (T x W x H)20 x 83 x 96 inches508 x 2108.2 x 2438.4 mm
Moving Platen Size (T x W x H)19 x 83 x 83 inches482.25 x 2108.2 x 2108.2 mm
Die Thickness (min. - max.)38 x 62 inches965.2 x 1574.8 mm
Die Stroke (adjustable):25 - 32 inches635 - 812.8 mm
Ejection Stroke10 inches254 mm
Ejection Force53 tons48.18 tons
Motor Size125 hp93.25 kw
Machine Size (L x W x H)40 x 11 x 12 feet12.1 x 3.3 x 3.6 m
Machine Weight260,000 pounds118 MT

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Description

Used, Ex-Cell-O B&T Model DC-1600-A 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Allen Bradley Model 5-30 PLC Control with LCD Display, Top Helper Side Automatic Tie Bar Pulling System, Center Hydraulic Ejection and Twin Cylinder Hydraulic Bumper Plate Ejection Systems, Two Core Circuits on Moving Platen and One Core Circuit on Front Platen, Inserted Shot Position (Shot Block) with Center, -2, -12 & -14 below center shot positions, New Prince Binary II shot System with 4500 PSI Intensifier circuit, Allen Bradley PLC 5/30 controls, second Hand, DCM-6146
