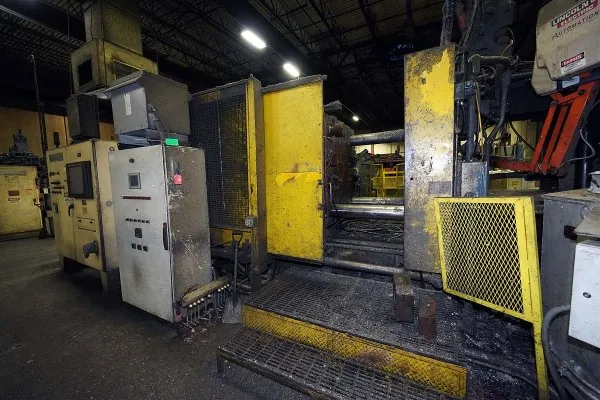

Used Prince Model: 633 CCA 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerPrince
Model633 CCA
Size700 Ton
Inventory NumberDCM-6097

Prince - 633 CCA 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-6097.

Features & Accessories

  • Allen Bradley PLC Controls
  • Prince Binary II Shot Control System with Low Impact System
  • Top Operator Side Automatic Tie Bar Pulling System
  • Twin Cylinder Hydraulic Bumper Plate Ejection System
  • Hydraulic Motorized Die Height Adjustment

Item Specifications for DCM-6097

USMetric
Rated Tonnage700 tons545 tons
Tie Bar Diameter6.75 inches171.45 mm
Clearance Between Tie bars32.75 x 32.75 inches831.85 x 831.85 mm
Front Platen Size (T x W x H)11.75 x 54.4 x 61.5 inches298.4 x 1384.3 x 1562.1 mm
Moving Platen Size (T x W x H)10.75 x 54.5 inches273.05 x 1384.3 mm
Die Thickness (min. - max.)18 inches - 38 inches457.2 mm - 965.2 mm
Die Stroke20 inches508 mm
Ejection Stroke5 inches127 mm
Ejection Force20 tons18.18 tons
Motor Size60 hp44.76 kw
Machine Size (L x W x H)2 x 8 x 10 feet.66 x 2.36 x 2.94 m
Machine Weight70000 pounds31818 kg

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Description

Used, Prince Model 633 CCA 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Allen Bradley PLC Controls, Prince Binary II Shot Control System with Low Impact System, Top Operator Side Automatic Tie Bar Pulling System, Twin Cylinder Hydraulic Bumper Plate Ejection System, Hydraulic Motorized Die Height Adjustment, Allen Bradley PLC controls, second Hand, DCM-6097

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
