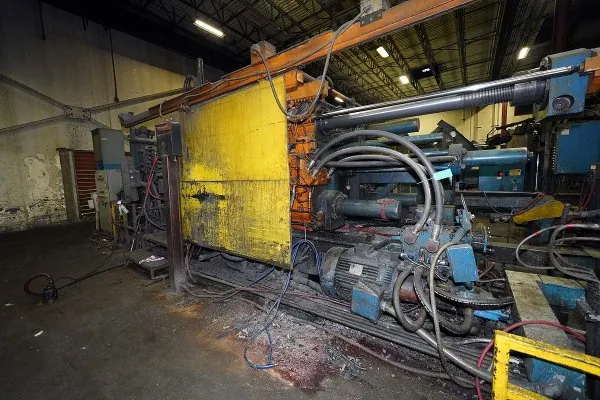

Used Buhler Model: H-800-B 980 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 11| Status | Sold |
|---|---|
| Manufacturer | Buhler |
| Model | H-800-B |
| Size | 980 Metric Ton |
| Inventory Number | DCM-6087 |
Buhler - H-800-B 980 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Buhler Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-6087.
Features & Accessories
- Buhler SC Controls
- Hydraulic Bumper Plate Ejection System
- Inserted (adjustable) Shot Position
- Automatic Lubrication System
- Hydraulic Motorized Die Height Adjustment
- Top Helper Side Automatic Automatic Tie Bar Pulling System
Item Specifications for DCM-6087
| US | Metric | |
| Rated Tonnage | 1080 tons | 980 tons |
| Tie Bar Diameter | 7.09 inches | 180 mm |
| Clearance Between Tie bars | 35.4 x 35.4 inches | 900 x 900 mm |
| Fixed Platen Size (H x V) | 55.5 x 62.6 inches | 1410 x 1592 mm |
| Moving Platen Size (H x V) | 55.5 x 55.4 inches | 1410 x 1408 mm |
| Die Thickness (min. - max.) | 12.99 - 41.34 inches | 330 - 1050 mm |
| Die Stroke | 35.43 inches | 900 mm |
| Ejection Stroke | 6.89 inches | 175 mm |
| Ejection Force | 38 tons | 34 tons |
| Motor Size | 73.4 hp | 55 kw |
| Machine Size (L x W x H) | 32.22 x 11.55 x 10.83 feet | 9.82 x 3.52 x 3.3 meters |
| Machine Weight | 90,389 pounds | 41,000 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Trim Press DCM-6063
- Sold – Rimrock Auto Ladle-Sprayer DCM-6088
- Sold – Fanuc Extractor Robot DCM-6089
- Sold – Pyrotek Electric Holding Furnace DCM-6090
- Sold – Forced Air Cooling Conveyor DCM-6091
Description
Used, Buhler Model H-800-B 980 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Buhler SC Controls, Hydraulic Bumper Plate Ejection System, Inserted (adjustable) Shot Position, Automatic Lubrication System, Hydraulic Motorized Die Height Adjustment, Top Helper Side Automatic Automatic Tie Bar Pulling System, Buhler controls, second Hand, DCM-6087
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
