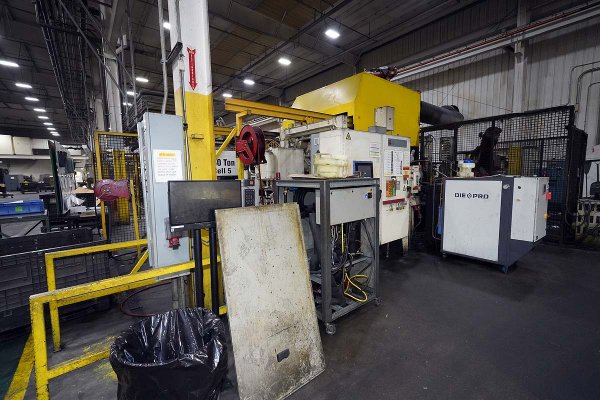

Used Prince Model: 940 CCA 1000 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used Prince Model: 940 CCA 1000 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 40
StatusSold
ManufacturerPrince
Model940 CCA
Size1000 Tons
Inventory NumberDCM-5932

Prince - 940 CCA 1000 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley ControlLogix 5572 PLC Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDF

Questions? Call (847) 360-9170 and mention DCM-5932.

Features & Accessories

  • Price includes contents of cell, automation – ABB robot ladle, ABB robot extractor, Die Spray , trim press, quench tank, conveyors
  • Automatic Tie Bar Pulling System on Top Operator Side Tie Bar, Two (2) Core Circuits on Moving Platen
  • Inserted Shot Position - Multi-Shot Location Capability
  • Twin Cylinder Hydraulic Bumper Plate Ejection System
  • Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Tonnage Adjustment System and Electronic Strain Gauges
  • Available as a Complete cell - the following are at additional cost: ABB IRB 4400 Robot Auto-Ladle, ABB IRB 6600 Die Spray, ABB 4400 Parts Extractor, ABB 4400 Trim Press Unload, Metal Mechanics 50 Ton Trim Press

Item Specifications for DCM-5932

USMetric
Rated Tonnage - Balance Load1,000 tons909 tons
Tie Bar Diameter8 inches203.2 mm
Clearance Between Tie bars40 inches1016 mm
Front Platen Size (T x W x H)15.5 x 64 x 74 inches393 x 1625.6 x 1879.6 mm
Moving Platen Size (T x W x H)13.75 x 64 x 64 inches349.3 x 1625.6 x 1625.6 mm
Die Thickness (min. - max.)18 - 38 inches457 - 965 mm
Die Stroke25 inches635 mm
Stot Cylinder7.0 inch bore, 4.0 inch rod, 26 - 32 inch stroke178 mm bore, 101 mm rod, 660 - 812 mm stroke
Ejection Stroke/Force6 inches x 21.5 tons152 mm x 19.5 tons
Motor Size100 hp74.6 kw
Machine Size (L x W x H)29.9 x 8.6 x 11 feet9.1 x 2.6 x 3.4 m
Machine Weight120,000 pounds54,545 kg

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Description

Used, Prince Model 940 CCA 1000 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include:, Automatic Tie Bar Pulling System on Top Operator Side Tie Bar, Two (2) Core Circuits on Moving Platen, Inserted Shot Position - Multi-Shot Location Capability, Twin Cylinder Hydraulic Bumper Plate Ejection System, Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Tonnage Adjustment System and Electronic Strain Gauges, Available as a Complete cell - the following are at additional cost: ABB IRB 4400 Robot Auto-Ladle, ABB IRB 6600 Die Spray, ABB 4400 Parts Extractor, ABB 4400 Trim Press Unload, Metal Mechanics 50 Ton Trim Press, Allen Bradley ControlLogix 5572 PLC controls, second Hand, DCM-5932

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
