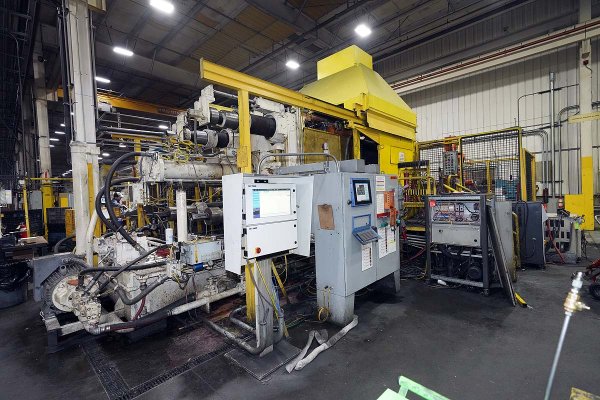

Used Prince Model: 1651 CCA 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 31| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 1651 CCA |
| Size | 1600 Ton |
| Inventory Number | DCM-5928 |
Prince - 1651 CCA 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley ControlLogix 5572 PLC with Visi-Trak Closed-Loop Servo Shot Control System Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5928.
Features & Accessories
- Price includes contents of cell, automation – ABB robot ladle, ABB robot extractor, Die Spray , trim press, quench tank, conveyors
- Visi-Trak Closed-Loop Servo Shot Control System with Allen Bradley ControlLogix 5572 PLC - Machine Fully Remanufactured in 2013 by Die Cast Press
- Dual Automatic Tie Bar Pullers on Top Two Bars, Electronic Tie Bar Strain Gauges - All Four Tie Bars
- Inserted Shot Position - Multi-Shot Location Capability
- Automatic Pressurized Oil Type Lubrication System
- Two (2) Auxiliary Hydraulic Core Circuits on Moving Platen
- Available as a Complete cell - the following are at additional cost: ABB 4400 Robot Auto-Ladle, ABB 6600 Die Spray, ABB 6600 Parts Extractor, Metal Mechanics 75 Ton Trim Press
Item Specifications for DCM-5928
| US | Metric | |
| Rated Tonnage | 1600 tons | 1454 tons |
| Tie Bar Diameter | 11 inches | 279.4 mm |
| Clearance Between Tie bars | 51 inches | 1295.4 mm |
| Front Platen Size (T x W x H) | 19.75 x 83 x 96 inches | 501.65 x 2108.2 x 2438.4 mm |
| Moving Platen Size (T x W x H) | 18.75 x 83 x 83 inches | 476.25 x 2108.2 x 2108.2 mm |
| Die Thickness (min. - max.) | 22 x 58 inches | 965.2 x 1473.2 mm |
| Die Stroke | 32 inches | 812.8 mm |
| Ejection Stroke | 10 inches | 254 mm |
| Ejection Force | 53 tons | 48.18 tons |
| Shot Cylinder Diameter: | 7 inches | |
| Machine Size (L x W x H) | 40 x 11 x 12 feet | 12.1 x 3.3 x 3.6 m |
| Machine Weight | 250,000 pounds | 113,636.36 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Trim Press DCM-5918
- Sold – ABB Ladle Robot DCM-5938
- Sold – ABB Sprayer Robot DCM-5939
- Sold – ABB Extractor Robot DCM-5944
- Sold – Quench Tank DCM-6001
Description
Used, Prince Model 1651 CCA 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Visi-Trak Closed-Loop Servo Shot Control System with Allen Bradley ControlLogix 5572 PLC - Machine Fully Remanufactured in 2013 by Die Cast Press, Dual Automatic Tie Bar Pullers on Top Two Bars, Electronic Tie Bar Strain Gauges - All Four Tie Bars, Inserted Shot Position - Multi-Shot Location Capability, Automatic Pressurized Oil Type Lubrication System, Two (2) Auxiliary Hydraulic Core Circuits on Moving Platen, Available as a Complete cell - the following are at additional cost: ABB 4400 Robot Auto-Ladle, ABB 6600 Die Spray, ABB 6600 Parts Extractor, Metal Mechanics 75 Ton Trim Press, Allen Bradley ControlLogix 5572 PLC with Visi-Trak Closed-Loop Servo Shot Control System controls, second Hand, DCM-5928
