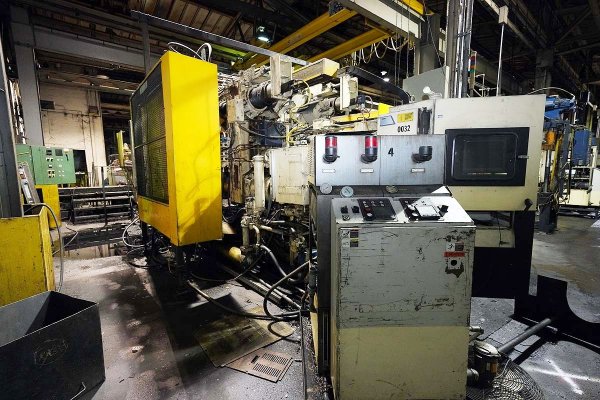

Used Prince Model: 1446 CCA 1400 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine

StatusSold
ManufacturerPrince
Model1446 CCA
Size1400 Ton
Inventory NumberDCM-5810

Prince - 1446 CCA 1400 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Allen Bradley PLC 5/30 Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-5810.

Features & Accessories

  • Factory Rebuilt and Upgraded by Prince in 2000 - Available as complete cell with Rimrock 305/410 Ladle-Sprayer package new in 2016 with Allen Bradley K350 controls and MPH Holimesy holding furnace.
  • Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Adjustment and Electronic Stain Gauges
  • Prince Binary II Shot Control System with Low Impact System, Close-Coupled Piston Accumulator Bottles and Piston Bottle Intensification
  • Twin Cylinder Hydraulic Bumper Plate Ejection System, Dual Automatic Tie Bar Puller System - Top Two Bars, Automatic Power Die Clamping System on Moving and Stationary Platens
  • Automatic Lubrication System
  • Allen Bradley PLC 5/30 PLC Controls
  • Four (4) Auxiliary Hydraulic Side-Core Circuits

Item Specifications for DCM-5810

USMetric
Rated Tonnage:1400 tons1272 metric tons
Tie Bar Diameter:9.5 inches241.3 mm
Clearance Between Tie bars:46.5 x 46.5 inches1181.1 x 1181.1 mm
Front Platen Size (T x W x H):17.25 x 75 x 85 inches438.15 x 1905 x 2159 mm
Moving Platen Size (T x W x H):15.75 x 75 x 75 inches400.05 x 1905 x 1905 mm
Die Thickness (min. - max.):24 inches - 44 inches609.6 mm - 1117.6 mm
Die Stroke:30 inches762 mm
Ejection Stroke/Ejection Force:6 inches/30 tons152.4 mm/27.22 metric tons
Shot Positions (inserted, adjustable):Center to -14 inchesCenter to 355.6 mm
Motor Size:125 hp93.25 kw
Machine Size (L x W x H):38 x 10 x 13 feet11.58 x 3.05 x 3.96 m
Machine Weight:180,000 pounds81646.63 kg

Description

Used, Prince Model 1446 CCA 1400 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Adjustment and Electronic Stain Gauges, Prince Binary II Shot Control System with Low Impact System, Close-Coupled Piston Accumulator Bottles and Piston Bottle Intensification, Twin Cylinder Hydraulic Bumper Plate Ejection System, Dual Automatic Tie Bar Puller System - Top Two Bars, Automatic Power Die Clamping System on Moving and Stationary Platens, Automatic Lubrication System, Allen Bradley PLC 5/30 PLC Controls, Four (4) Auxiliary Hydraulic Side-Core Circuits, Allen Bradley PLC 5/30 controls, second Hand, DCM-5810

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
