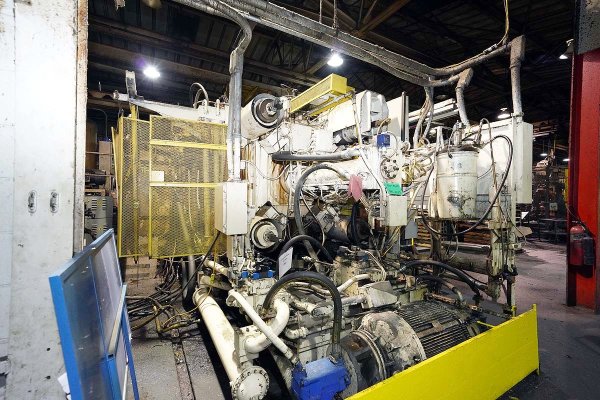

Used Prince Model: 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 19| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 1246 CCA |
| Size | 1200 Ton |
| Inventory Number | DCM-5809 |
Prince - 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/30 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5809.
Features & Accessories
- Available as complete cell with Rimrock 305/410 Ladle-Sprayer package new in 2018 with Allen Bradley K5500 controls and MPH Holimesy holding furnace.
- Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Adjustment and Electronic Stain Gauges
- Prince Binary II Shot Control System with Low Impact System, Close-Coupled Piston Accumulator Bottles and Piston Bottle Intensification
- Twin Cylinder Hydraulic Bumper Plate Ejection System, Top Operator Side Automatic Tie Bar Puller System
- Automatic Lubrication System
- Allen Bradley PLC 5/30 PLC Controls with Software update by Buhler Prince in 2013
- Three (3) Auxiliary Hydraulic Side-Core Circuits
Item Specifications for DCM-5809
| US | Metric | |
| Rated Tonnage: | 1200 tons | 1088 tons |
| Tie Bar Diameter: | 9.5 inches | 241 mm |
| Clearance between Tie Bars: | 46.5 x 46.5 inches | 1181 x 1181 mm |
| Front Platen Size (T x W x H): | 17.75 x 75 x 85 inches | 450 x 1778 x 2032 mm |
| Moving Platen Size (T x W x H): | 15.75 x 75 x 75 inches | 400 x 1905 x 1905 mm |
| Die Thickness (minimum to maximum): | 24 - 44 inches | 609 - 1117 mm |
| Die Stroke: | 30 inches | 762 mm |
| Shot Position Standard: | Center to -12 inches below | Center to -304 mm below |
| Shot Cylinder Stroke: | 30 - 36 inches | 762 - 914 mm |
| Motor Size: | 100 and 15 HP | 75 Kw and 11 Kw |
| Machine Size (L x W x H): | 36 x 9 x 13 feet | 10.97 x 2.74 x 3.96 meters |
| Machine Weight: | 165,000 pounds | 75,000 kg |
Description
Used, Prince Model 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Adjustment and Electronic Stain Gauges, Prince Binary II Shot Control System with Low Impact System, Close-Coupled Piston Accumulator Bottles and Piston Bottle Intensification, Twin Cylinder Hydraulic Bumper Plate Ejection System, Top Operator Side Automatic Tie Bar Puller System, Automatic Lubrication System, Allen Bradley PLC 5/30 PLC Controls with Software update by Buhler Prince in 2013, Three (3) Auxiliary Hydraulic Side-Core Circuits, Allen Bradley PLC 5/30 controls, second Hand, DCM-5809
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
