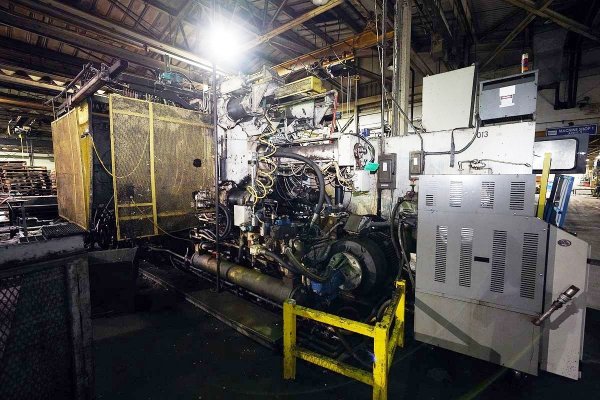

Used Prince Model: 1043 CCA 1100 U.S. Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 22| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 1043 CCA |
| Size | 1100 U.S. Ton |
| Inventory Number | DCM-5804 |
Prince - 1043 CCA 1100 U.S. Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/30 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5804.
Features & Accessories
- Available as complete cell with Rimrock 305/410 Ladle-Sprayer package new in 2023, with Allen Bradley K5500 controls and MPH Holimesy holding furnace.
- Equipped with Prince Binary II shot control System
- Allen Bradley PLC 5/30 Controls
- Twin Cylinder Hydraulic Bumper Plate Ejection System, Prince Power Die Clamp Systems on Moving & Stationary Platens
- Fully Automatic Dual Tie Bar Pulling System
- Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Tonnage Adjustment System
- Two (2) auxiliary hydraulic side core circuits, Hydraulic Shot Position Adjustment
Item Specifications for DCM-5804
| US | Metric | |
| Rated Tonnage | 1100 tons | 1000 tons |
| Tie Bar Diameter | 8.5 inches | 215.9 mm |
| Clearance Between Tie bars | 43.5 x 43.5 inches | 1104.9 x 1104.9 mm |
| Front Platen Size (T x W x H) | 16.50 x 68 x 78 inches | 419 x 1727 x 1981 mm |
| Moving Platen Size (T x W x H) | 15 x 68 x 68 inches | 381 x 1727.2 x 1727.2 mm |
| Die Thickness (min. - max.) | 24 - 44 inches | 609 mm - 1117.6 mm |
| Die Stroke | 27 inches | 686 mm |
| Shot Positions (inserted, adjustable): | Center to -12 inches below center | Center to -304 mm below |
| Shot Cylinder Bore & Stroke (adjustable): | 8 inches x 36 - 30 inches | 203 mm x 914 - 762 mm |
| Ejection Stroke/Force | 4 inches / 21.5 tons | 101.6 mm / 19.5 tons |
| Machine Size (L x W x H) | 35.6 x 8.6 x 12.6 feet | 10.82 x 2.59 x 3.81 m |
| Machine Weight | 140,000 pounds | 63,636 kg |
Description
Used, Prince Model 1043 CCA 1100 U.S. Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Equipped with Prince Binary II shot control System, Allen Bradley PLC 5/30 Controls, Twin Cylinder Hydraulic Bumper Plate Ejection System, Prince Power Die Clamp Systems on Moving & Stationary Platens, Fully Automatic Dual Tie Bar Pulling System, Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Tonnage Adjustment System, Two (2) auxiliary hydraulic side core circuits, Hydraulic Shot Position Adjustment, Allen Bradley PLC 5/30 controls, second Hand, DCM-5804
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
