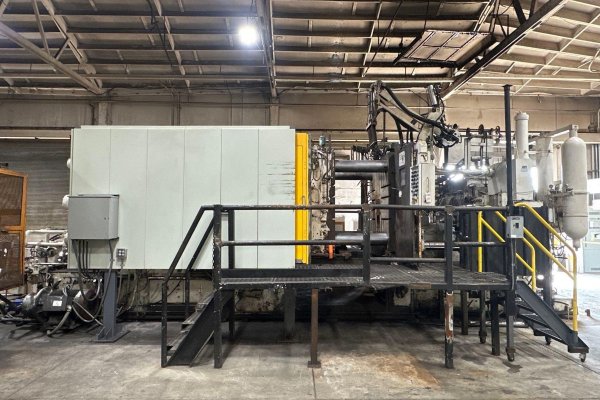

Used Idra Model: OL-1300 DG PPR 1350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 23| Status | Sold |
|---|---|
| Manufacturer | Idra |
| Model | OL-1300 DG PPR |
| Size | 1350 Metric Ton |
| Inventory Number | DCM-5726 |
Idra - OL-1300 DG PPR 1350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5726.
Features & Accessories
- Preliminary Specifications - Confirm Specifications before Bidding
- Allen Bradley PLC Controls with PanelView 550 HMI
- Inserted Shot Postions
- Hydraulic Bumper Plate Ejection System
- 3 Core Circuits on Moving Platen
- Electric Powered Motorized Die Height Adjustment System, Automatic Lubrication System
Item Specifications for DCM-5726
| US | Metric | |
| Rated Tonnage: | 1430 Tons | 1300 Tons |
| Tie Bar Diameter: | 8.4 inches | 215 mm |
| Clearance between Tie Bars: | 40.1 inches | 1020 mm |
| Die Thickness (minimum - maximum): | 17.7 - 43.3 inches | 450 - 1100 mm |
| Die Stroke: | 42.1 inches | 1070 mm |
| Ejector Platen Force: | 54 tons | 49 tons |
| Ejector Platen Stroke: | 9.1 inches | 230 mm |
| Main Motors: | (2) 50 HP | (2) 37 kw |
| Shot Stroke: | 29.5 inches | 750 mm |
| Machine Weight: | 161,000 pounds | 73,000 kg |
Description
Used, Idra Model OL-1300 DG PPR 1350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Allen Bradley PLC Controls with PanelView 550 HMI, Inserted Shot Postions, Hydraulic Bumper Plate Ejection System, 3 Core Circuits on Moving Platen, Electric Powered Motorized Die Height Adjustment System, Automatic Lubrication System, Allen Bradley PLC controls, second Hand, DCM-5726
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
