SOLD

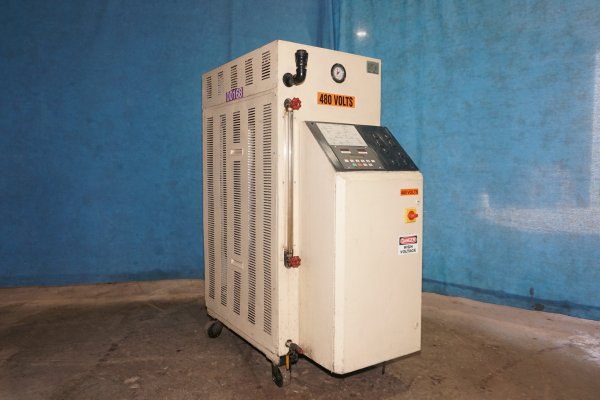

Used Sterlco Model: M2B-2016-U1 36 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusSold
ManufacturerSterlco
ModelM2B-2016-U1
Size36 kW
Inventory NumberDCM-5685

Sterlco - M2B-2016-U1 36 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, M2B+ Microprocessor Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5685.

Features & Accessories

  • Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
  • Sterlco M2B+ Microprocessor Controller
  • Alarms for low fluid pressure, pump rotation, over temperature
  • Set points for Process, High Alarm, Low Alarm
  • Displays for Process Temperature, Return Temperature and Temperature Difference
  • Equipped with Water Cooling Circuit & Built-in pump pressure relief valve
  • Unit on casters for easy movement

Item Specifications for DCM-5685

USMetric
Main Heater Power (Zone #1):36 KW, 1725 RPM36 kW, 1725 RPM
Pump Motor Size (Zone #1):2 HP1.47 KW
Flow Rate (Zone #1):24 gallons per minute91 liters per minute
Connection size/type:1 inch NPT1 inch NPT
Maximum Operating Temperature:550 degrees F288 degrees C
Overall Size (L x W x H):55 x 25 x 63 inches1397 x 635 x 1600 mm
Full Load Amps @ 480/3/60:46.7 AMPS46.7 AMPS
Approximate Shipping Weight:950 pounds430 kG

Video

Documents

Description

Used, Sterlco Model M2B-2016-U1 36 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Sterlco M2B+ Microprocessor Controller, Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference, Equipped with Water Cooling Circuit & Built-in pump pressure relief valve, Unit on casters for easy movement, M2B+ Microprocessor controls, second Hand, DCM-5685

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
